| Part Number | Quantity |
|---|---|
| LEDPL-D2W-918930-14W | |
| LEDPL-D2W-10MM-CONN | |
| LEDPL-D2W-10MM-JOIN |

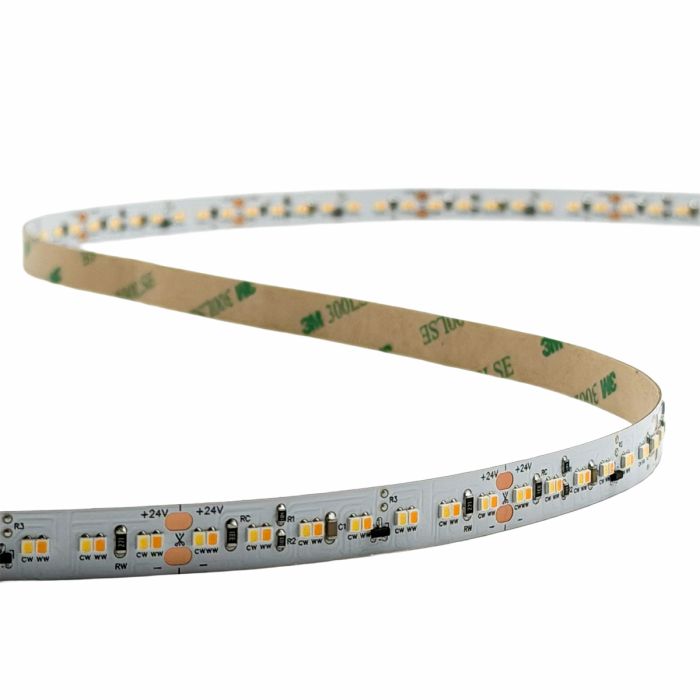

5m reel of Dim-to-Warm LED strip 1800-3000K, High Density 252LEDs/m, 14W/m, 24V, IP20
In stock
Part No
LEDPL-D2W-918930-14W
Using two wires, the Penn Elcom Dim-to-Warm feature changes the CCT from 3000K (warm white) to 1800K (ultra warm amber light also called candlelight) as the LED strip is dimmed from 100% to 3%. It has a High-density design with both warm white and cold white each containing 126LED/m. It can be dimmed by direct dimming with a PWM (Pulse-Width Modulation) output type of 24V driver.
Application:
Indirect decorative lighting for display, shelving, cabinets, corridor, stairs, coves, ceiling coffers and architectural details.
Accessories:
LEDPL-D2W-10MM-CONN – Penn PCB connector 150mm
LEDPL-D2W-10MM-JOIN – Penn PCB joiner 150mm
LEDPL-D2W-10MM-CONN – Penn PCB connector 150mm
LEDPL-D2W-10MM-JOIN – Penn PCB joiner 150mm
CA2F20 - 2 core flat cable for low voltage LED applications (0.75 mm²)
Control options:
Mains dimming (aka Phase Cut / Triac): Osram/Inventronics 36W 1ch driver LEDOTFIT3624PC, Osram/Inventronics 75W 1ch driver LEDOTFIT7524PC, Osram/Inventronics 150W 1ch driver LEDOTFIT15024PC
DALI Premium: Osram/Inventronics 30W 1ch driver LEDOTIDALI30CH1, Osram/Inventronics 50W 1ch driver LEDOTIDALI50G3CH4, 80W 1ch
driver LEDOTIDALI80CH1, 160W 1ch driver
LEDOTIDALI160G3CH1, 360W* 4ch dimmer LEDITD0P4CNFC
driver LEDOTIDALI80CH1, 160W 1ch driver
LEDOTIDALI160G3CH1, 360W* 4ch dimmer LEDITD0P4CNFC
DALI Cost effective: Osram/Inventronics 36W 1ch driver LEDITD03624VC, Osram/Inventronics 75W 1ch driver LEDITD07524VC, Osram/Inventronics 150W 1ch driver LEDITD015024VC, Osram/Inventronics 200W 1ch driver LEDITD020024VC
DMX:
Osram/Inventronics 4ch dimmer LEDOTDMXRGBW or 5ch dimmer
LEDOTDMXDIM5CH or FossLED 4ch dimmer LEDFLDC4YDMX + Wall
controller LEDWP4RGBWN
Osram/Inventronics 4ch dimmer LEDOTDMXRGBW or 5ch dimmer
LEDOTDMXDIM5CH or FossLED 4ch dimmer LEDFLDC4YDMX + Wall
controller LEDWP4RGBWN
Casambi: Osram/Inventronics 50W
4ch driver LEDOTWI504CHCA, 80W 4ch driver LEDOTWI804CHCA,
160W 2ch driver LEDOTWI1602CHCA, 288W* 5ch dimmer
LEDITD0P4CNFC
4ch driver LEDOTWI504CHCA, 80W 4ch driver LEDOTWI804CHCA,
160W 2ch driver LEDOTWI1602CHCA, 288W* 5ch dimmer
LEDITD0P4CNFC
*with 24V LED strips
Important Notes:
*To ensure the effectiveness of system dimming, it is necessary to conduct a complete compatibility test on the power supply, dimmer, controller, and light strip.
Must be installed with a heat sink for cooling, for example aluminium extrusion designed for LED tape.
3M 300LSE adhesive tape is on the back of the LED strip.
One end of the LED strip has a 500mm factory soldered red/white silicon cable tail.
Must be installed with a heat sink for cooling, for example aluminium extrusion designed for LED tape.
3M 300LSE adhesive tape is on the back of the LED strip.
One end of the LED strip has a 500mm factory soldered red/white silicon cable tail.
Technical Specification:
- Part number: LEDPL-D2W-918930-14W
- Dimension (LxWxH): 5000mm x 10mm x 1mm
- IP rating: IP20
- Lumen output (± 10%): 1300 lm/m
- LED efficiency @3000K: 93lm/W
- Energy efficiency class of regulation (EU) 2019/2020: G for 3000K (CRI 90) in IP20
- LED strip cut-points: 55.6mm/ every 14 LED chips
- LED chips per meter: 252 LED’s/m
- PCB type: 3oz white FPC, OSP
- Operating ambient temperature: 20-45°C, storage 20-60°C
- Warranty: 5 years
- Lifespan: L70≥50,000 hours @Tc≤65°C
- Certification: CE, UKCA
- Power consumption: ± 14W/m
- Input Voltage: 24VDC
- LED current: (29~35)mA/LED
- LED CCT: 1800-3000K (Dim-to-warm)
- CRI≥90
- Beam Angle: 120°
| Data Sheet | LEDPL-D2W-918930-14W Data Sheet Installation guide |
|---|---|
| LED reel/strip length | 5m |
| Product Type | LED strips |
| LEDs per meter | 252 |
| LED strip cutting point | Every 56mm |
| Colour Rendering Index (CRI) | >90 |
| Warranty | 5 yrs |
| LED Strip width | 10mm |
| LED strip type | Standard SMD |
| Colour appearance | Dim-to-warm |
| Colour temperature (CCT) | 1800-3000K |
| Input voltage | 24V |
| Light output (Lumens per meter) | 1000-1500lm |
| Power consumption | 10-15 W/m |
| LED Protection type | IP20 |
| Weight | 149g |
