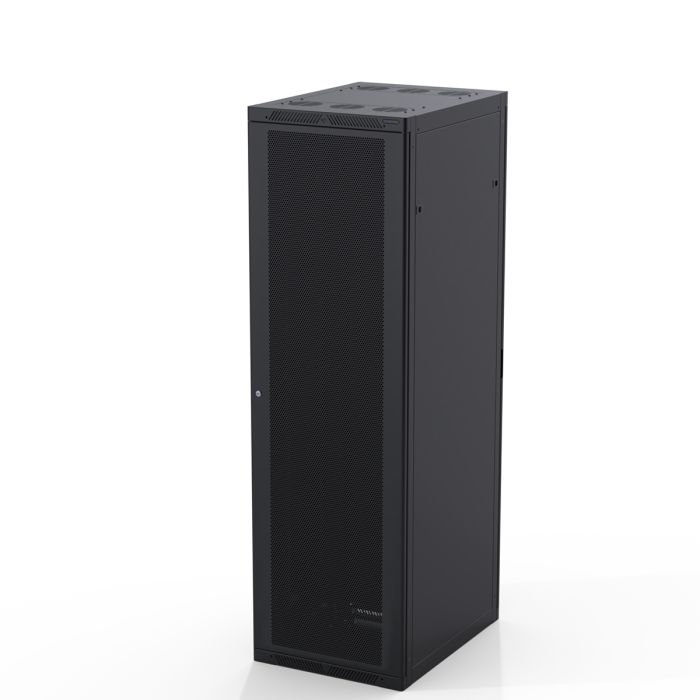

42U Server Enclosure / 10/32 Rails / 600mm x 800mm / Vented Door

Part No
R5086-V-42UK
£1,003.79 £836.49
In stock
42U High-End Server Rack Enclosure with 10/32 Threaded Rack Rails and Vented Steel Front Door - 600mm Wide / 800mm Deep

The R5000 brings in a new generation of server rack enclosures. It has a multitude of added features including integral cable management bars and adjustable threaded rail. Its hidden assembly screws and rolled edges give the cabinet a sleek, minimalistic finish.

Features Include:
 - Vented Steel Front Door
 - 10/32 Threaded Adjustable Rack Rails
 - Mounting depths: from 150mm to 700mm
 - 4 X W0950 Castor/Foot Included
 - Integral Cable Trays
 - Removable Front Door, Back Door and Side Panels
 - Doors Can Be Rotated
 - Magnetic Indents Secure Doors
 - Customisable Tops and Bottoms
 - Multiple Mounting Options for Castors And Feet
 - Integral Cable Management
 - Earth Points and Gangable
 - Hidden Assembly Screws
 - Can be Built as Open, Sides Only or Closed Tower Versions
 - Optional side door locks available


This product is also available in custom sizes and colours.
Also available with polycarbonate, plain steel or vented steel doors.
Also available with M6 rack rails
Technical Information
Data Sheet Spec Sheet
Presentation
Material Steel
Type R4000/R5000 Series
Size (U) 42U
Weight 106kg
Depth 80cm
Door Type Perforated Steel Door
Hole Types 10/32 Threaded Holes
Height 1.97m
Finish Black
Customer Questions
How do I order the relative rack with a vented back door (like the Front)
Thank you for your enquiry regarding the R5086-V-42UK, Please email us at [email protected] and we will assist Regards Penn Elcom
Are the R5086-V-42UK Racks Fully assembled
Thank you for your enquriy, yes these are fully assembled, We can also supply in a flatpack format if required Kind Regards PennElcomOnline
