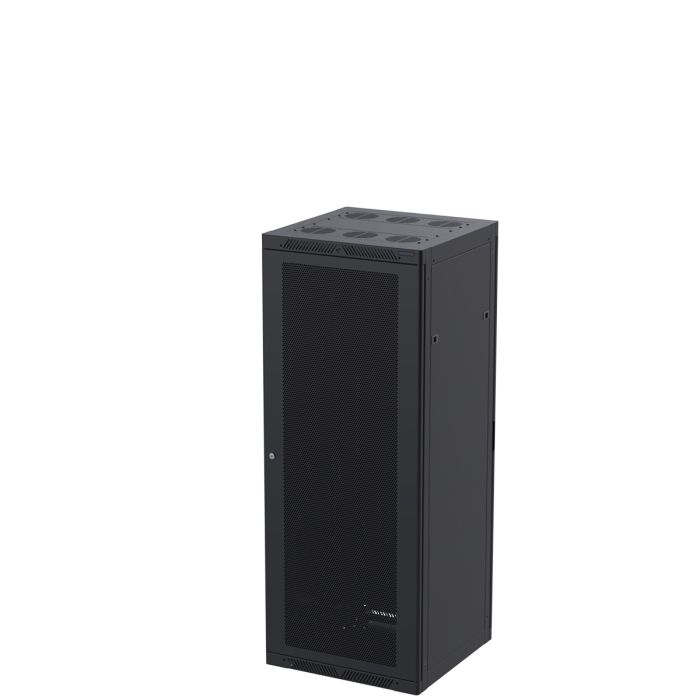

The R5066-V-32UK is a high-quality, pre-assembled 32U server rack enclosure representing Penn Elcom's next generation of professional racking solutions. Suitable for server rooms, data centres, IT infrastructure, broadcast, AV, and studio environments, it features adjustable 10/32 threaded rack rails, a lockable vented steel front door, integral cable management bars, and a clean, sleek finish with hidden assembly screws and rolled edges. Available in a range of U sizes and depth configurations to suit any installation requirement.
Rack Size: 32U (19″ standard)
Width: 600mm
Depth: 600mm
Height: Approx. 1596mm with W0950Z castors/feet, 1524mm without
Maximum Usable Depth: 500mm
Rail Mounting Depth: Adjustable from 150mm to 500mm
Hole Type: 10/32 threaded rack rails
Door Type: Lockable vented steel front door and magnetic indents to secure door. Front and back doors can be rotated and removed.
Side Panels: Removable for easy access and installation. Optional side door locks available
Load Capacity: 300kg (with W0950Z castors/feet)
Colour: Black
Materials: Steel enclosure, vented steel front door
Weight: Approx. 75kg
Assembly: Pre-assembled
Mounting: Floor-standing with 4 X W0950Z Castor/Foot included. Our range is compatible with R8295 set of 4 Adjuster Feet with M12 Thread, R8480 castor set for light duty and R8480/HD castor set for heavy duty.
Cable Management: Integrated cable management system
Gangable: Yes - can be ganged with additional R5066-32UK enclosures using the R4066-GANG-32UK cable chase accessory
Earth Points: 4 points at the top, 4 points at the base. Doors and side panels have optional earth points.
Mobility: Our range of enclosures are also compatible with some of our castor ranges including W0980 & W0980B, W0990/80 & W0985/80, or W0990-V6 & W0985-V6 for larger systems.
Shelf Support: Use R8840/16 for rack shelf support (sold separately)
Cable Knockouts: Infill panel with knockouts at base
Cooling: 6 fan knockouts on top for optimal ventilation. Suitable for fan trays with 3 fans (R4000-FT3), 4 fans (R4000-FT4) or 6 fans (R4000-FT6)
Customisation: Available in custom sizes, doors and colours upon request.
Also available with M6 rack rails (R4066-V-32UK) and polycarbonate (R5066-32UK) front door.
