3U Black Hinged Vented Rack Panel with Slam Lock for 3mm Rails

In stock

Part No

R1372/3UVK

Be the first to review this product

Description

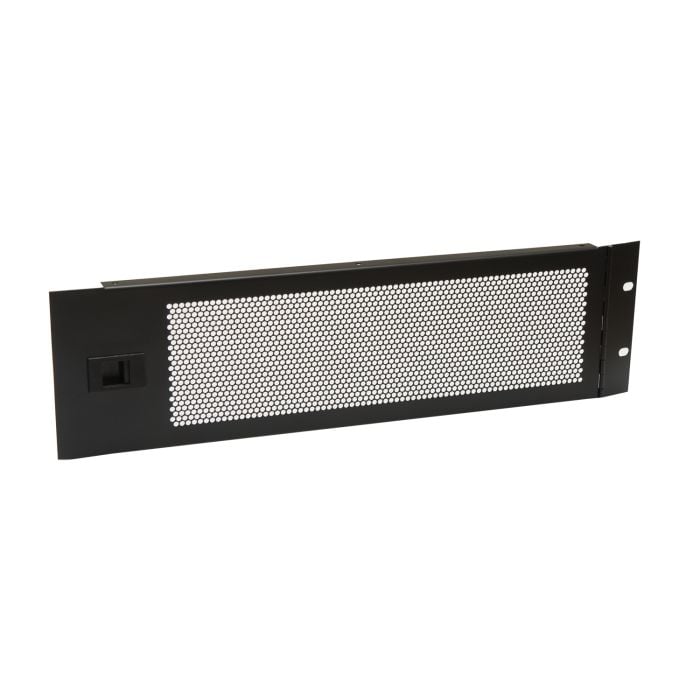

The R1372/3UVK is a 3U hinged vented rack panel, also known as a rack door, that spans three rack spaces and opens on a keyless slam lock for tool-free access. It is built specifically for 3mm rack rail.

Pressed from 1.2mm steel in black, 482.6mm wide and 15mm deep. It fixes to one front rail with two screws at the top and bottom of its span, and the slam lock catches on the flange of the rail opposite, so it swings clear without a separate hinge. The fixing slots are obround, giving room to line it up squarely.

63% free area: Ø3.97mm holes on a 4.76mm 60° staggered pitch
The slam lock is keyless, so it holds the panel closed and keeps the rack front tidy
Fits either way round, so the door swings from the left or the right
Fixings not supplied: use cage nuts and screws, or screws alone if your rack strip is tapped

For use with 3mm rack rail: the R0828 family. For 1.5mm and 2mm rails, use the R1272 range. For a lockable rack door, see the R1298 range.

Specification

Rack Spaces: 3U
Height: 132.7mm
Width: 482.6mm
Depth: 15mm
Material: Steel 1.2mm
Finish: Black
Perforation: Ø3.97mm holes, 4.76mm 60° staggered pitch
Free Area: 63%
Slam Lock: Keyless (R1291-D-LOCK)
Rail Compatibility: 3mm
Mounting: Two screws to one front rail, latch engages the opposite rail flange
Fixings: Not supplied
Weight: 585g

Technical Information

Technical Information
3D Model	View 3D Drawing
Size (U)	3U
Weight	585g
Finish	Black

Q&A (3)

Customer Questions

Is it possible to retrofit the R1372/3UVK or get this with lock and key?

Unfortunately this is not a standard option, as the panel locks into the rack strip Regards Penn Elcom

Will these R1372/3UVK hinged rack panels mount in front of rack shelves? If so, will it also mount in front of the sliding shelves, and if so, can the shelves slide in and out when the hinged door is open?

Thank you for your enquiry, Unfortunately these do not work in front of a shelf these latch into the rack strip. We do offer a custom metal service, if you would like a quote please email us at [email protected] Regards Penn Elcom...

Would I be able to mount 2 X 120mm fans on the back of it? Would the vent holes line up for the fan mounts?

This product is not made for additional mounting without modification, and we are unable to recommmend its suitability for this project. We also sadly cannot confirm without further dimensional data that the fan units could match up.

Please, mind that only logged in users can submit questions

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

View All Rack Doors

View All 19 Inch Racking

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Price	Finish	Size (U)
R1372/2UVK Price: £40.98 £34.15 Finish: Black Size (U): 2U Drawing:	£40.98 £34.15	Black	2U
R1372/3UVK Price: £48.67 £40.56 Finish: Black Size (U): 3U Drawing:	£48.67 £40.56	Black	3U
R1372/4UVK Price: £57.40 £47.83 Finish: Black Size (U): 4U Drawing:	£57.40 £47.83	Black	4U
R1372/5UVK Price: £66.82 £55.68 Finish: Black Size (U): 5U Drawing:	£66.82 £55.68	Black	5U
R1372/6UVK Price: £76.91 £64.09 Finish: Black Size (U): 6U Drawing:	£76.91 £64.09	Black	6U
