2U Black Hinged Vented Rack Panel with Slam Lock

Be the first to review this product

Part No

R1272/2UVK

Was: $79.93 Was: $71.89 Save: 10% Now: $71.89

In stock

Description

The R1272/2UVK is a 2U hinged vented rack panel, also known as a rack door, that spans two rack spaces and opens on a keyless slam lock for tool-free access.

Pressed from 0.05" (1.2mm) steel in black, 19" (482.6mm) wide and 0.59" (15mm) deep. It fixes to one front rail with two screws at the top and bottom of its span, and the slam lock catches on the flange of the rail opposite, so it swings clear without a separate hinge. The fixing slots are obround, giving room to line it up squarely.

63% free area: Ø0.16" (3.97mm) holes on a 0.19" (4.76mm) 60° staggered pitch
The slam lock is keyless, so it holds the panel closed and keeps the rack front tidy
Fits either way around, so the door swings from the left or the right
Fasteners not supplied: use cage nuts and screws, or screws alone if your rack strip is tapped

For use with 0.06" (1.5mm) and 0.08" (2mm) rack strip: the R0863 and R0883 families. For 0.12" (3mm) rails, use the R1372 range. For a lockable rack door, see the R1298 range.

The solid R1272/2UK spans the same 2U.

Specification

Rack Spaces: 2U
Height: 3.48" (88.3mm)
Width: 19" (482.6mm)
Depth: 0.59" (15mm)
Material: Steel 0.05" (1.2mm)
Finish: Black
Perforation: Ø0.16" (3.97mm) holes, 0.19" (4.76mm) 60° staggered pitch
Free Area: 63%
Slam Lock: Keyless (R1291-D-LOCK)
Rail Compatibility: 0.06" (1.5mm) and 0.08" (2mm)
Mounting: Two screws to one front rail, latch engages the opposite rail flange
Fasteners: Not supplied
Weight: 0.9lb (390g)

Technical Information

Technical Information

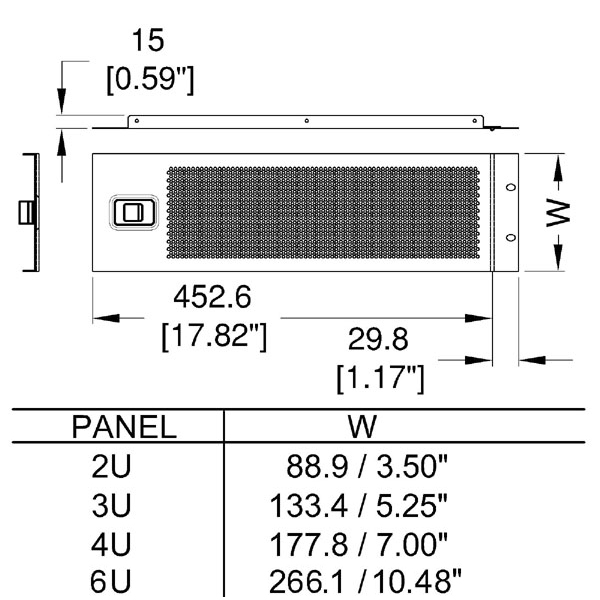

3D Model	View 3D Drawing
Material	1/16" Steel
Size (U)	2U
Weight	13.76oz
Finish	Black

Product Questions (3)

Customer Questions

Is there also a lockable perforated version of R1272/2UVK?

Thank you for your enquiry. We do not have a lockable version currently in our range. We do stock security panels that may be suitable for your application - https://penn-elcom.com/19-inch-racking/rack-panels/security-panels We of course can supply...

Will this fit over a rack shelf?

Unfortunately the R1272 range requires the rack rails to secure the slam latch, so these will not work with equipment behind them unless you have two sets of front rack rails.

Will this panel work without issues when installed in other off-the-shelf racks?

This panel may have compatibility issues depending on your setup: Rack compatibility: This panel is designed for 3mm rack rails. It may not function properly with racks that use thinner rails.
Shelf compatibility: This panel cannot be mounted in ...
