NeutriCON Male Contact Solder PS1


Part No
£0.31 £0.26
In stock
NeutriCON Male Contact Solder Neutrik NeutriCON Male solder contacts, gold plated. Industrial Connectors / Neutricon - Modular System The modular system of the miniCON series offers the possibility to...

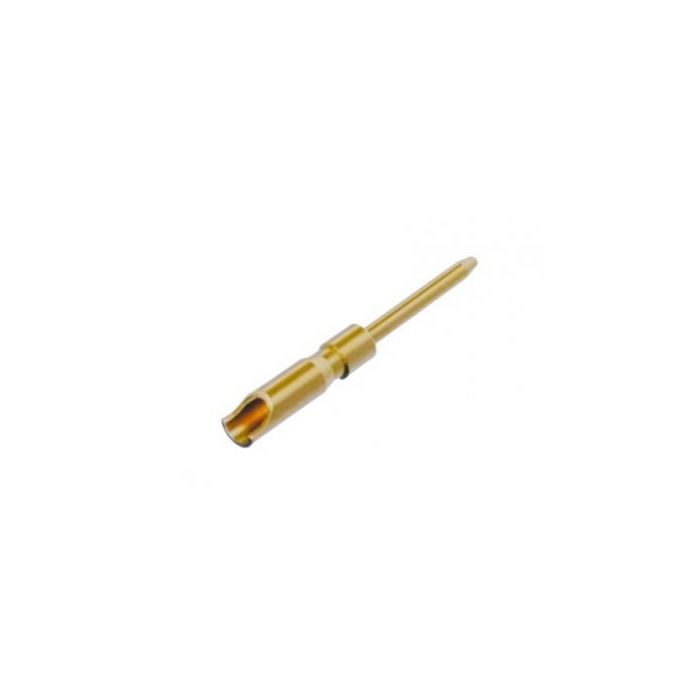

NeutriCON Male Contact Solder

Neutrik NeutriCON Male solder contacts, gold plated.
Industrial Connectors / Neutricon - Modular System

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

Features & Benefits:

 - Contact configuration can be selected from 1 to 8 contacts
- Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
 - Push-pull self-locking system
- Coding system possible (polarization)

Technical Specifications:

- Number of contacts: 1 - 8 user selectable
- Rated current - solder contact: 7.5 A
- Rated voltage (VDE 0110, section A): 50 V ac
- Dielectric strength: 1500 V dc
- Contact resistance: = 2 mOhm
- Insulation resistance after damp heat test (IEC 68-2-30): = 5*108 Ohm

Sold in bags of 100
Technical Information
Weight 40g
