NeutriCON Cable Connector/ Locking Device 90 Degrees SC81

Neutrik

Part No
CONSC81
Was: £9.37 £7.81 Save: 10% Was: £8.45 £7.04 Save: 10% £8.45 £7.04
In stock
NeutriCON Cable Connector/ Locking Device 90 Degrees Neutrik NeutriCON Female cable connector housing, black coated, 90 degree coding. The modular system of the miniCON series offers the possibility...

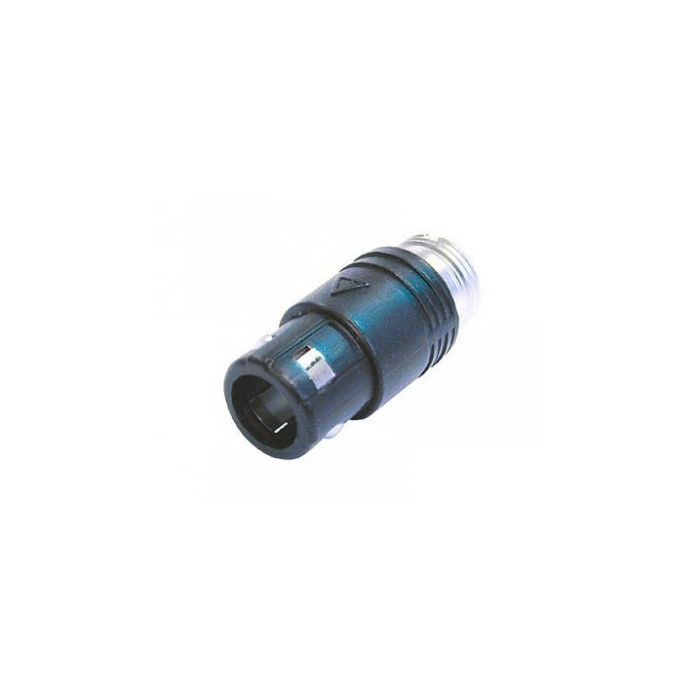

NeutriCON Cable Connector/ Locking Device 90 Degrees

Neutrik NeutriCON Female cable connector housing, black coated, 90 degree coding.

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set...).

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.


Features & Benefits:

- Contact configuration can be selected from 1 to 8 contacts
- Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
- Push-pull self-locking system
- Coding system possible (polarization)

Technical Specifications:

- Number of contacts: 1 - 8 user selectable
- Rated current - solder contact: 7.5 A
- Rated voltage (VDE 0110, section A): 50 V ac
- Dielectric strength: 1500 V dc
- Contact resistance: = 2 mOhm
- Insulation resistance after damp heat test (IEC 68-2-30): = 5*108 Ohm

Box quantity 100 pieces
Technical Information
Weight 40g
