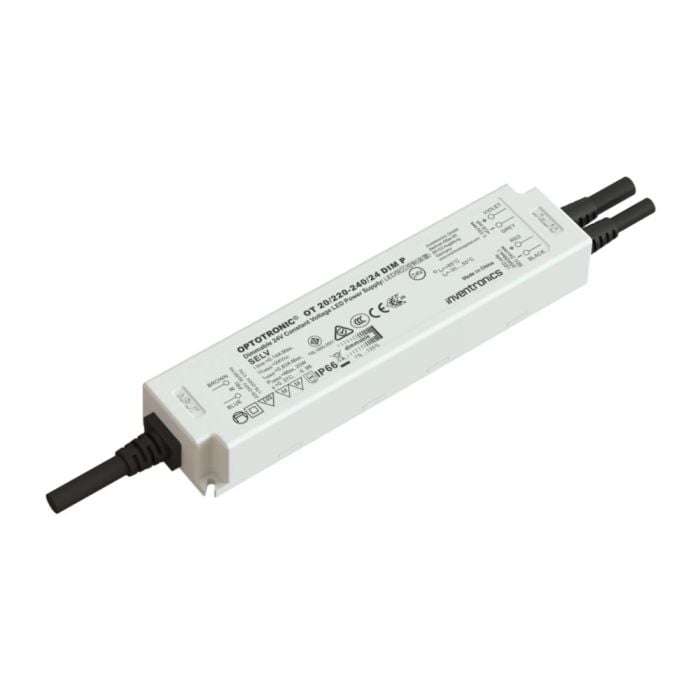

Led Driver Ot 20/220-240/24 Dim P 24v 20w 1-10V dimmable 6977770438347
Inventronics
Part No
LEDOT2024DIMP
CV Power supplies 24 V with 1-10 V
20W single channel LED power supply with build-in 1-10V dimming function
Product benefits:
Large range of products from 20 W to 250 W
Installation in very cold and hot environments
Very stable output power
High electronical reversible short-circuit, overload, over temperature protection
Smart Power Supply boosting power to turn on cold LEDs
Independent installation possible
Dimming range 1-100 %
Product features:
DC mode functionality
Type of protection IP66 and IP67
Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
Wide operating temperature range -22 to 131 °F (-30 to +55 °C)
Lifetime up to 50000 h (temperature at max. tc)
Dimmable via fully isolated 1-10 V interface
Areas of application:
Facades, public squares, cruise ships
Signage
Suitable for indoor and outdoor installations
EAN: 6977770438347 (Osram EAN was 4052899545809)
Technical Data:
Electrical data:
Nominal voltage: 220-240 V
Mains frequency: 50-60 Hz
Input voltage AC: 198-264 V
Total harmonic distortion: < 15 %
Power factor: 0.95
ECG efficiency: 83 %
Device power loss: 3.4 W
Power loss in stand-by mode: <0.5 W
Inrush current: 20 A
Max. ECG no. on circuit breaker 10 A (B): 49
Max. ECG no. on circuit breaker 16 A (B): 77
Surge capability (L-N): 4 kV
Nominal output voltage: 24.2 V
U-OUT (working voltage): 30 V
Output PSTLM: <1
Output SVM: <0.4
Nominal output power: 20 W
Maximum output power: 20 W
Galvanic isolation: SELV
Galvanic isolation primary/secondary: 3 kV
Dimensions & weight:
Length: 7.0" (178mm)
Width: 1.7" (43mm)
Height: 1.0" (25mm)
Mounting hole spacing, length: 6.7" (169mm)
Product weight: 0.7 lb (315g)
Cable cross-section, input side: 1.0 sqmm
Cable cross-section, output side: 1.0 sqmm
Wire preparation length, input side: 3.5" (90mm)
Wire preparation length, output side: 3.5" (90mm)
Colors & materials:
Casing material: Plastic
Temperatures & operating conditions:
Ambient temperature range: -22 to 131 °F (-30 to +55 °C)
Maximum temperature at tc test point: 185 °F (85 °C)
Max.housing temperature in case of fault: 230 °F (110 °C)
Temperature range at storage: -40 to 185 °F (-40 to +85 °C)
Permitted rel. humidity during operation: 5-85 %
Lifespan:
ECG lifetime: 50000 h
Capabilities:
Dimmable: Yes
Dimming interface: 1-10 V
Dimming range: 1-100 %
Dimming method: Pulse Width Modulation
Suitable for fixtures with prot. class: II
Type of connection, output side: Cables
Number of channels: 1
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
Intended for no-load operation: No
No-load proof: Yes
Certificates & standards:
Approval marks – approval: ENEC / RCM / CCC / EAC
Standards: EN 61347-1 / EN 61347-2-13 / EN 55015 / EN 61547 / EN 61000-3-2 / EN 61000-3-3 / EN 60598-1 / EN 62384
Type of protection: IP66 / IP67
Logistical data:
Commodity code: 85044083900
Applicable region: APAC (excl. China, India, Japan) / CHINA / EUROPE / MEA / SOUTH AMERICA
Environmental information:
Date of Declaration: 01-09-2026
Primary Article Identifier: 4052899545809 | 6977770438347
Declaration No. in SCIP: database In work
SCIP_STATUS: In work
| Type of Control/Dimming | 1-10V |
|---|---|
| Type of LED Driver | Constant Voltage |
| Weight | 14.46oz |
