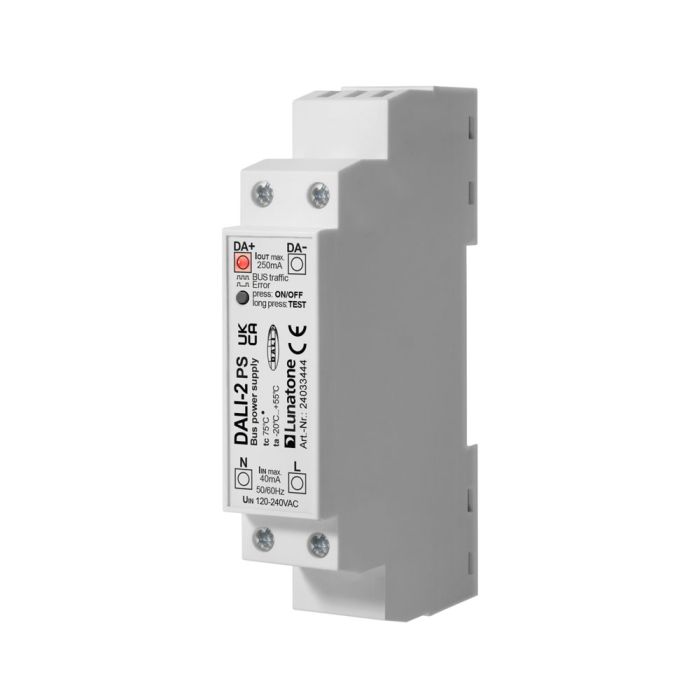

DALI-2 PS DIN rail, DALI Bus Power Supply Unit 250mA 24033444

DALI-2 Bus Power Supply Unit

DALI-2 PS serves as power supply for the DALI bus system. Standardised voltage and current limitation as well as timing ensure a reliable bus communication. With the output current of up to 250mA and entire DALI line can be supplied. Up to 64 addressable DALI devices and an additional 20 to 30 control modules (DALI Sensors, MC, Touch panel…) can be connected. Units with different output current and housing are available, suitable for DIN rail mounting, remote ceiling installation (housing with strain relief) or flush-mounted installation boxes.

Product features:
Designed and made in the EU
Suitable for DIN rail mounting
Guaranteed Supply Current 200mA
Maximum Supply Current 250mA
Suitable to power an entire DALI-line with 64 standard DALI ballasts
Worldwide use: supply range 120-240Vac and 50/60Hz frequency
Surge immunity up to 400V
Load indicator
Integrated Test button for function check
System status queries (DALI current, bus load, runtime etc.) with DALI-Cockpit Software

Product Type: DALI-2 PS
Article number: 24033444

Input L, N
Input type: Main power supply
Marking terminals: L, N
Rated input voltage: 120-240 Vac
Input voltage frequency: 50 / 60 Hz
Max. input supply current: 20 mA (@240Vac), 40 mA (@120Vac)
Max. power consumption: 5.3 W
Start-up time: 250 ms

output: DA+, DA-
Output type: DALI supply
Marking terminals: DA+, DA-
Output voltage: 12 - 20,5 Vdc
DALI supply current: 250 mA
Guaranteed output current: 200 mA
Maximum output current: 250 mA*
Open circuit proof: yes
Short circuit proof: yes
Shut down on short circuit: yes

Insulation data:
Impulse voltage category: II
Pollution degree: 2
Rated insulation voltage: 250 V
Rated impulse withstanding voltage: 4 kV
Insulation DALI/mains: reinforced isolation
Insulation test voltage DALI-output/mains: 3000 Vac

Environmental conditions:
Storing and transportation temperature: -20°C … +75°C
Operational ambient temperature: -20°C … +55°C
Rel. humidity, none condensing: 15% … 90%

General data:
Dimensions (l x w x h): 98 x 17.5 x 56 mm
Mounting: DIN rail
Rated max. temperature tc: 75 °C
Expected life time @tc: 50000 h
Protection class: II in intended use
Protection degree: IP20

Terminals:
Connection type: screw connector
Wire size solid core: 0,5 … 2,5 mm2 (AWG20…AWG14)
Wire size fine wired: 0,5 … 2,5 mm2 wire (AWG20 … AWG14)
Size using wire end ferrule: 0,25 … 1.5 mm2
Stripping length: 7 mm / 0,27 inch
Locking torque: 0.5 Nm
Release of wire: open screw

Standards:
DALI: EN 62386-101:2014
EMC: EN 61547, EN50015 / IEC CISPR15
Safety: EN 61347-2-11, EN 61347-1
Markings: DALI-2, CE, UKCA
