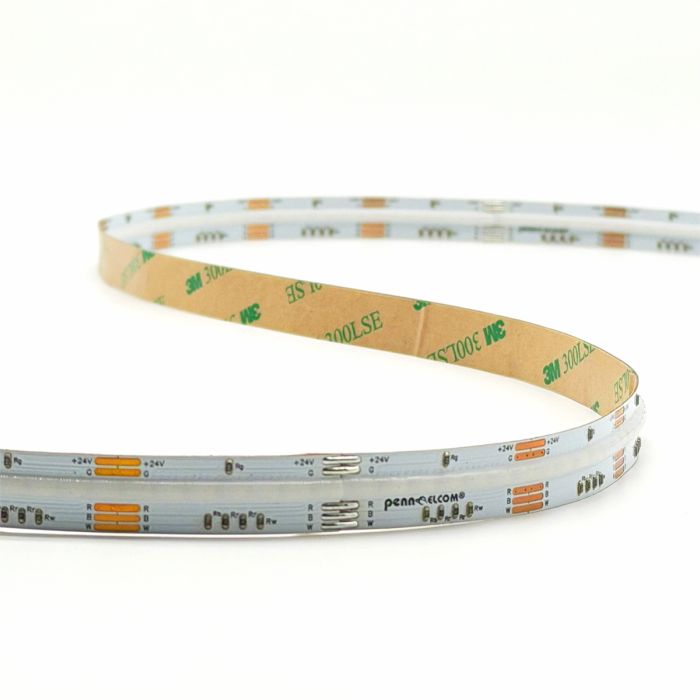

5m/reel COB RGBW Strip 18w 24v 840LEDs/m for Dot-free Effect
In stock
Part No
LEDPL-COBRGBW940-18W
The Penn Elcom COB RGBW Series LED strip comes with homogeneous, soft linear lighting performance. Thick copper ensures consistent voltage and brightness across the full 5m reel. High density with 840 LED chips per metre. Can be controlled via PWM, for example Bluetooth/Casambi, DALI, DMX or RF.
Application:
Indirect decorative lighting for displays, shelving, cabinets, corridors, stairs, coves, ceiling coffers, restaurants, bars, media units, cinemas etc.
Indirect decorative lighting for displays, shelving, cabinets, corridors, stairs, coves, ceiling coffers, restaurants, bars, media units, cinemas etc.
Accessories:
CA5F20V2 - 5 core flat cable for low voltage LED applications (0.75 mm²)
Control options:
DALI: Osram/Inventronics 50W 4ch driver LEDOTIDALI50G3CH4, 80W 4ch
driver LEDOTIDALI80G3CH4, 160W 2ch driver
LEDOTIDALI160G3CH2, 360W* 4ch dimmer LEDITD0P4CNFC
driver LEDOTIDALI80G3CH4, 160W 2ch driver
LEDOTIDALI160G3CH2, 360W* 4ch dimmer LEDITD0P4CNFC
DMX: Osram/Inventronics
4ch dimmer LEDOTDMXRGBW or 5ch dimmer LEDOTDMXDIM5CH or
FossLED 4ch dimmer LEDFLDC4YDMX + Wall controller
LEDWP4RGBWN
4ch dimmer LEDOTDMXRGBW or 5ch dimmer LEDOTDMXDIM5CH or
FossLED 4ch dimmer LEDFLDC4YDMX + Wall controller
LEDWP4RGBWN
Casambi: Osram/Inventronics 50W
4ch driver LEDOTWI504CHCA, 80W 4ch driver LEDOTWI804CHCA,
160W 2ch driver LEDOTWI1602CHCA, 288W* 5ch dimmer
LEDITD0P4CNFC
4ch driver LEDOTWI504CHCA, 80W 4ch driver LEDOTWI804CHCA,
160W 2ch driver LEDOTWI1602CHCA, 288W* 5ch dimmer
LEDITD0P4CNFC
*with 24V LED strips
Important Notes:
Must be installed with a heat sink for cooling, for example aluminium extrusion designed for LED tape.
3M 300LSE adhesive tape is on the back of the LED tape.
One end of the LED tape has a 500mm factory soldered tail with brown/green/red/blue/white cable.
The LED strip has a minimum bending radius of 20mm.
3M 300LSE adhesive tape is on the back of the LED tape.
One end of the LED tape has a 500mm factory soldered tail with brown/green/red/blue/white cable.
The LED strip has a minimum bending radius of 20mm.
Technical Specification
- Part number: LEDPL-COBRGBW940-18W
- Dimension (LxWxH): 5000mm x 12mm x 1.5mm
- IP rating: IP20
- Light source: COB (Chip on board) & CSP (Chip scale package)
- Total lumen output (± 10%): 970 lm/m
- Red lumen output (± 10%): 135 lm/m
- Green lumen output (± 10%): 405 lm/m
- Blue lumen output (± 10%): 68 lm/m
- 4000K lumen output (± 10%): 369 lm/m
- LED strip cut-points: every 33mm (28 LED chips)
- LED chips per metre: 840 LED's/m
- PCB type: white FPC, OSP
- Operating ambient temperature: 20-45°C, storage 20-60°C
- Energy efficiency class of regulation (EU) 2019/2020: G for white in IP20
- Warranty: 5 years
- Certification: CE, UKCA
- Power consumption (± 10%): 18W/m (4.5W per colour)
- Input voltage: 24VDC
- LED current: 6mA/chip
- LED CCT: RGBW 4000K
- CRI≥90
- Beam angle: 150°
- Dimming method: PWM
- Maximum running length: 5m
| Data Sheet | LEDPL-COBRGBW940-18W Data Sheet Installation guide |
|---|---|
| LED reel/strip length | 5m |
| Product Type | LED strips |
| LEDs per meter | 840 |
| LED strip cutting point | Every 33mm |
| Colour Rendering Index (CRI) | >90 |
| Warranty | 5 yrs |
| LED Strip width | 12mm |
| LED strip type | Standard COB |
| Colour appearance | RGBW |
| Colour temperature (CCT) | 4000K |
| Input voltage | 24V |
| Light output (Lumens per meter) | 500-999lm |
| Power consumption | 15-20W/m |
| LED Protection type | IP20 |
| Weight | 161g |
