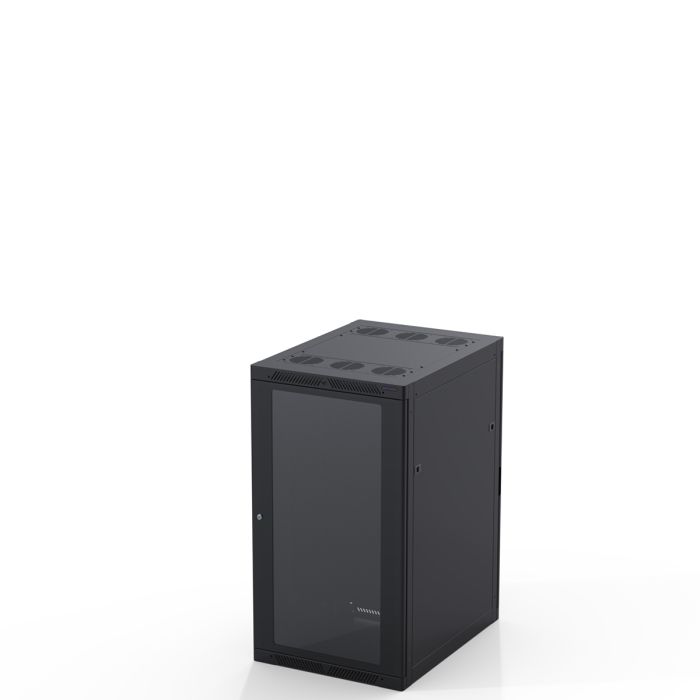

The R4086-22UK is a high-quality, pre-assembled 22U server rack enclosure representing Penn Elcom's next generation of professional racking solutions. Suitable for server rooms, data centres, IT infrastructure, broadcast, AV, and studio environments, it features adjustable M6 threaded rack rails, a lockable polycarbonate front door, integral cable management bars, and a clean, sleek finish with hidden assembly screws and rolled edges. Available in a range of U sizes and depth configurations to suit any installation requirement.
Rack Size: 22U (19″ standard)
Width: 600mm
Depth: 800mm
Height: Approx. 1151mm with W0950Z castors/feet, 1079mm without
Maximum Usable Depth: 700mm
Rail Mounting Depth: Adjustable from 150mm to 700mm
Hole Type: M6 threaded rack rails
Door Type: Lockable front door with polycarbonate window and magnetic indents to secure door. Front and back doors can be rotated and removed.
Side Panels: Removable for easy access and installation. Optional side door locks available
Load Capacity: 300kg (with W0950Z castors/feet), 1000kg (direct on floor)
Colour: Black
Materials: Steel enclosure, polycarbonate window on front door
Weight: Approx. 68kg
Assembly: Pre-assembled
Mounting: Floor-standing with 4 X W0950Z Castor/Foot included. Our range is compatible with R8295 set of 4 Adjuster Feet with M12 Thread, R8480 castor set for light duty and R8480/HD castor set for heavy duty.
Cable Management: Integrated cable management system
Gangable: Yes - can be ganged with additional R4086-22UK enclosures using the R4086-GANG-22UK cable chase accessory
Earth Points: 4 points at the top, 4 points at the base. Doors and side panels have optional earth points.
Mobility: Our range of enclosures are also compatible with some of our castor ranges including W0980 & W0980B, W0990/80 & W0985/80, or W0990-V6 & W0985-V6 for larger systems.
Shelf Support: Use R8840/16 for rack shelf support (sold separately)
Cable Knockouts: Infill panel with knockouts at base
Cooling: 6 fan knockouts on top for optimal ventilation. Suitable for fan trays with 3 fans (R4000-FT3), 4 fans (R4000-FT4) or 6 fans (R4000-FT6)
Customisation: Available in custom sizes, doors and colours upon request.
Also available with 10/32 rack rails (R5086-22UK) and vented steel (R4086-V-22UK) front door.
