1U Black Rack Drawer

Part No
£44.34 £36.95
In stock

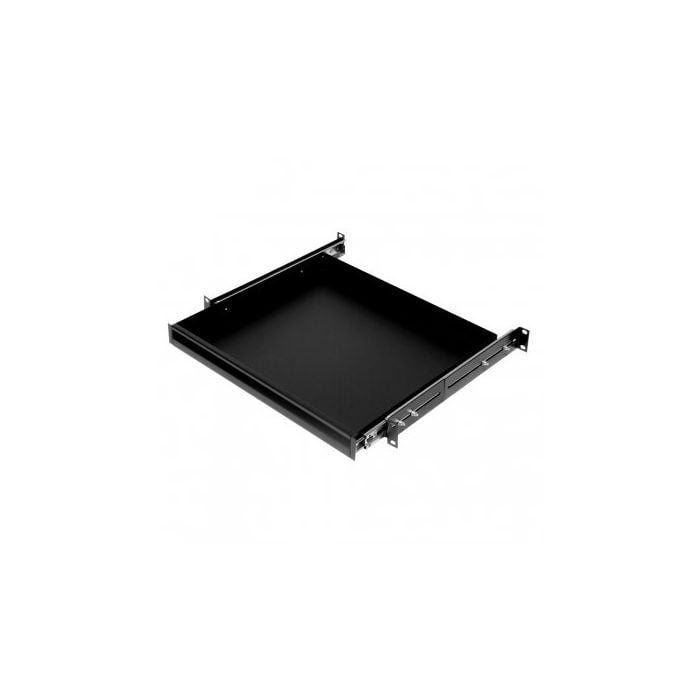

1U Black Rack Drawer.

Can be used upside down as a shelf inside.

Width x Depth x Height = 415mm x 368mm x 41mm

Recommended Load Capacity: 19kg
Technical Information
Load Capacity 19kg
Material 1.2mm Steel
Size (U) 1U
Weight 3.3kg
Depth 38cm
Finish Black
Customer Questions
Will this drawer stay in place during transport?
Hi Thank you for your enquiry. This particular drawer will not stay in place during transport but the R1291k/2l will Many thanks
how far does the R1291 drawer open?

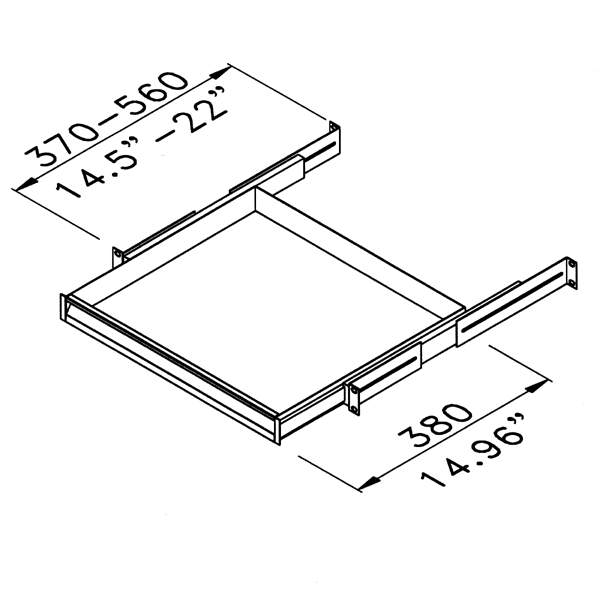

This drawer opens to 380mm / 14.96”
Does this item require mounting front and rear, or will front mounting suffice for light loads? Can you tell me the inside clearance height when the drawer is closed? Thanks
The drawer will support front mount only on light loads but the runners are guaranteed to run much more smoothly with both front and rear mounting. The runners are adjustable for different depths.
Recently taken delivery of the 1U drawer. Does the drawer come free of the rails for installation? Or are there any mounting instructions... Thanks,
Hi The R1291K comes ready for install which includes the rack ears Thanks Penn Elcom
We have brought these R1291K shelves but they do not reach the back of the rack to secure them, fo you do a extender that’s will fit between shelf and rear of middle Atlantic rack, like a 1U spacer?
Thank you for your enquiry, Yes we offer various products that may assist, If you email you enquiry to [email protected] one of our team will recommend a solution Kind Regards PennElcomOnline
Hi how does the drawer hold shut Is there a latch or similar
Thank you for your enquiry, This R1291K model holds it self shut with friction catches. We do however have the R1291K/2L which has 2 slam latches. Regards Penn Elcom
