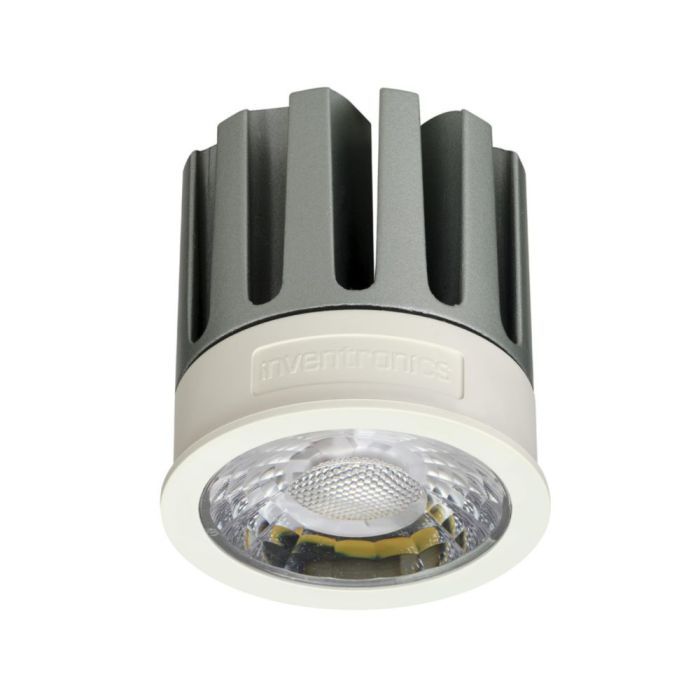

Tunable White Prevaled Coin Cob 50 Pl-cn50-cob-1000-tw-tw90-24d-g3 6937186151674

Tunable/Dynamic White, wide CCT range 2700-6500K, G3 PrevaLED Coin. 90CRI.

Priced per unit; available in any quantity. For best LED driver to match your requirements please see listing below.
Where
the output current of the driver is not a fixed value but a range,
specific steps have to be taken to setup a fixed 350mA output current.
Please get in touch for more information.

Product family features:
Color consistency < 3 SDCM in 2700 K
High flux output up to 1,000 lm
Beam angle: 24°, 40°
Type of protection: IP20

Product family benefits:
Compact form factor compatible with conventional MR16 CDM lamps
Wide CCT range from 2700 K to 6500 K
Targeting Human Centric Lighting (HCL)

Areas of application:
Retail
Shops
Restaurants
Hospitality
Museums
Gallery
Suitable for indoor applications

Electrical data:
Nominal current: 0.3 A
Nominal voltage: 38 V
Type of current: DC
Energy consumption in on-mode: 10.1 kWh/1000h
On-mode power: 10.1 W

Photometrical data:
Luminous efficacy: 102 lm/W (@ 4000K)
Light color (designation): Tunable White
Color rendering index Ra: 90
Useful luminous flux (Φuse): 992 lm
Correlated color temperature CCT: 2700-6500 K
Colour consistency (McAdam ellipses): 3
Peak luminous intensity: 4290
Beam Angle: 24 Degree

Light technical data:
Starting time: < 0.0 s
Warm-up time (60 %): < 0.00 s

Dimensions & weight:
Diameter: 50.0 mm
Product weight: 94.00 g
Height: 55 mm
Width: 50 mm
Length: 50 mm

Colors & materials:
Heatsink color: Silver

Temperatures & operating conditions:
Performance temp. acc. to IEC 62717: 70 °C
Maximum temperature at tc test point: 95 °C
Ambient temperature range: -20…+40 °C
Temperature range at storage: -40…80 °C

Lifespan:
Number of switching cycles: >15000
Lumen maintenance factor LMF: 96

Certificates & standards:
Standards: Acc. to IEC 62471/Acc. to IEC 60598-1/Acc. to EN 60529/Acc. to EN 62031/Acc. to EN 55015/Acc. to EN 61547/CE
Energy efficiency class: F
Type of protection: IP20

Logistical data:
Commodity code: 85395100000

Environmental information:
Primary Article Identifier: 6937186151674
Declaration No. in SCIP database: In work
