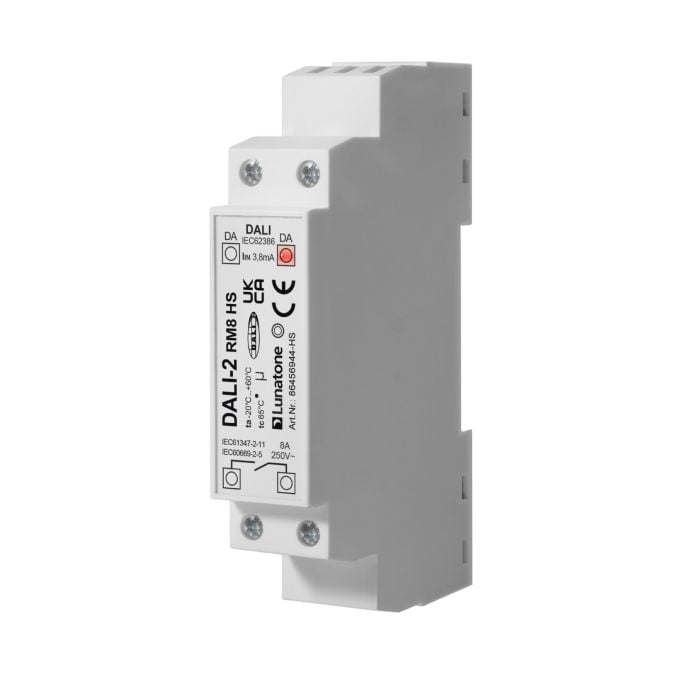

8A DALI-2 DIN rail Relay Module for the integration of non-dimmable loads in DALI lighting systems 86456944-HS

8Amps DALI-2 Relay Module for the integration of non-DALI loads in DALI lighting systems

The DALI RM8 HS provides a relay contact that can be controlled via the DALI bus. In this way, loads without a DALI input can be easily integrated into a DALI circuit. Permanent loads up to 1kW can be switched via DALI commands. The purposeful switching in voltage zero crossings, enables an increase of the device lifetime. Power-up mode and system-failure settings can be configured using the DALI Cockpit PC Software.

Product features:
Designed and made in the EU
Max nominal load of 1000VA
Integrated current limiter (up to 40A)

Looking for other versions? Check-out the Lunatone 16A High Inrush LEDDALI2RM16IHS version.

Product family overview:
Compact relay module for the direct control of 230V AC loads via DALI
Ballasts without DALI-input can be simply integrated in a DALI lighting control system. The loads can then be switched ON and OFF by DALI commands
The DALI RM8/16 module fulfills the requirements for DALI Device Type 7 - switching function (firmware 2.0 and higher)
Configurable Power-Up and System-Failure behaviour
Free DALI-Cockpit software package for configuration of DALI-systems and Lunatone DALI components
The RM 8/16 is supplied directly by the DALI signal line
Zero cross switching
The DALI RM 8/16 module acts like any conventional DALI ballast, and can be addressed and configured accordingly.

Article number: 86456944-HS

Electrical data:
Supply: via DALI-line
Typ. current consumption: 3.8mA
Relay output switch on/off voltage: 250Vac
Max. nominal load circuit breaker: 1000VA (6A max)
Max. breaking current: 8A
Max. inrush current: 40A
Max. continuous current: 8A
Switching method: Zero cross switching
Type of relay contact: normally open
Switching operations at nominal load, resistive: >10⁵
Maximum switching frequency: 1Hz
Input: DALI

General data:
Dimensions: 98mm x 17.5m x 56mm
Protection degree: IP20
Behaviour at Power Up: programmable: ON/OFF/no Change
Behaviour at System failure: programmable: ON/OFF/no Change

Environmental conditions:
Storage and transportation temperature: -20°C +75°C
Operating ambient temperature: -20°C +60°C

Terminals:
Connection type: screw connector
Wire size: solid core 0.5 … 2.5 mm2 (AWG20 … AWG14)
Wire size: fine wire 0.5 … 2.5 mm2 (AWG20 … AWG14)
Wire size: using wire end ferrule 0,25 … 1,5 mm2
Stripping length: 7 mm / 0,27 inch
Tightening/ release of wire: 0,5Nm
Release of wire: open screw

Standards:
DALI: IEC 62386-102, IEC 62386-208
EMC: EN 61547, EN 50015 / IEC CISPR15
Safety: EN 61347-2-11, EN 61347-1
Markings: DALI-2, CE, UKCA
