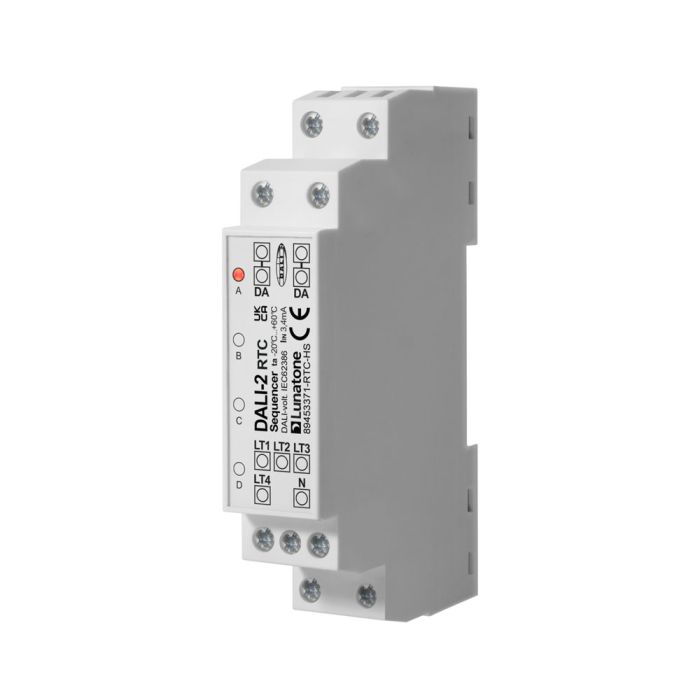

DALI-2 RTC Sequencer, DALI Real Time Clock with Scheduler. DIN rail version 89453371-RTC-HS

DALI-2 RTC Sequencer Control Device. Sequencer with real-time clock and timer function

The DALI-2 RTC Sequencer enables automatic, time-based execution of command sequences.
In the DALI Cockpit menu of the DALI-2 RTC Sequencer, up to 32 entries can be created, each consisting of command(s), an effective range and either an execution time or a manual activation.
The command can either be a single DALI command or a combination of multiple DALI commands (macros/ sequences). For the target area, the options are: broadcast, groups, and individual addresses. Time settings can include specific times, dates, weekdays, days of the month, etc. and also periodic repetitions.
Additionally, entries can be started and stopped externally via scene commands or manually via the push button inputs.

2 housing types are available, either for DIN Rail mounting (this one) or for installation behind a switch in a flush-type installation box.
The DIN Rail type provides 4 switching inputs for mains voltage to start the sequences, and 4 LEDs to indicate active sequences.
The version for installation behind a switch provides 4 potential free inputs to start the sequences.

Easy configuration via DALI-Cockpit PC Software.

Product features:
Control device for automatically running DALI command sequences
DALI Real Time Clock
Time can be set and queried via DALI instance (type 0 generic – real time clock)
Scheduler Function with up to 32 schedule entries
Entries can be defined wit DALI Macros / Sequences (multiple DALI commands in a row), in total over all macros up to 200 DALI commands
An entry can contain up to 200 DALI commands (single entry then reaches max. overall commands)
Astro-clock function
For each scheduler job: weekday, day of month, months, time stamp and DALI commands can be defined
Periodic repetitions can be easily realized by entering multiple time stamps
Supports sending of DALI control commands as well as multiple command sequences (macros) – thereby including DT8 and Tc control and configuration- commands (twice)
Allows simple enabling and disabling scheduler entries via DALI scene commands or device switching inputs
This DIN-rail version has 4 switching inputs for mains voltage to start/stop the sequences or timer entries and LED to display running sequences / active entries
Daylight saving mode
Easy schedule configuration via DALI- Cockpit Software tool and suitable DALI PC interfaces, such as the LEDDALI2USBPRO and LEDDALI2USB
No additional power supply needed, the DALI RTC Sequencer module is supplied directly via the DALI line
Time and date settings are retained for approximately 3 days once fully charged, afterwards the time is no longer synchronised
Types for backbox installation and DIN rail mounting, suitable for installation in protection class II devices
Multi-master capable: Several modules can be installed within a DALI circuit
Designed and made in the EU

Product type: DALI-2 RTC Sequencer
Article number: 89453371-RTC-HS (DIN rail version)

DALI interface, power supply:
Input type: DALI
Terminal markings: DA, DA
Voltage range: 9,5 - 22,5 Vdc according to IEC62386
Typical current consumption DALI: 3.4 mA
Max. current consumption DALI: 3.7 mA
DALI addresses: none
DALI-2 addresses: 1

Inputs:
Input type: Switching input for mains voltage
Number of inputs: 4
Marking input terminals: LT1, LT2, LT3, LT4, N
Input voltage range: 230 Vac
Tolerance of input voltage: +10%/-15%
Frequency of a.c. voltage: 50…60 Hz
Minimum length of control pulse: 40 ms
Input resistance: 660 kΩ
Galvanic isolation: Yes (switching inputs/ DALI)
Max wire length pushbutton input: 10m (up to 50m in an interference-free environment i.e. no parallel power lines)

Insulation data:
Impulse voltage: category II
Pollution degree: 2
Rated insulation voltage: 250V
Insulation DALI / mains: reinforced isolation
Insulation test voltage DALI / mains: 3000Vac

Environmental conditions:
Storing and transportation temperature: -20°C +75°C
Operational ambient temperature: -20°C +60°C
Rel. humidity, not condensing: 15% - 90%

General data:
Dimensions (l x w x h): 98 x 18 x 56 mm
Mounting: DIN rail mounting integration in class II devices
Rated maximum temperature tc: 65 °C
Protection class: II in intended use
Protection degree: IP20
Real time clock (accuracy): quartz based (~20ppm)
Time and date - sustainability if not supplied: up to 3 days, if fully charged (6h supplied)

Terminals:
Connection type: screw connector
Wire size: solid core: 0,5 - 2,5 mm2 (AWG20 - AWG14)
Wire size: fine wired: 0,5 - 2,5 mm2 (AWG20 - AWG14)
Wire size: using wire end ferrule: 0,25 - 1 mm2
Stripping length: 7 mm / 0,27 inch
Locking torque: 0.5 Nm
Release of wire: open screw

Standards:
DALI: IEC62386-101:2014, IEC62386-103:2014
EMV: EN 61547, EN 50015 / IEC CISPR15
Safety: EN 61347-2-11, EN 61347-1
Markings: DALI-2, CE, UKCA
