Low Noise Miniature Mic Patch Cable Black PATCH-BLK

Part No
CAKPB
£1.19 £0.99
In stock

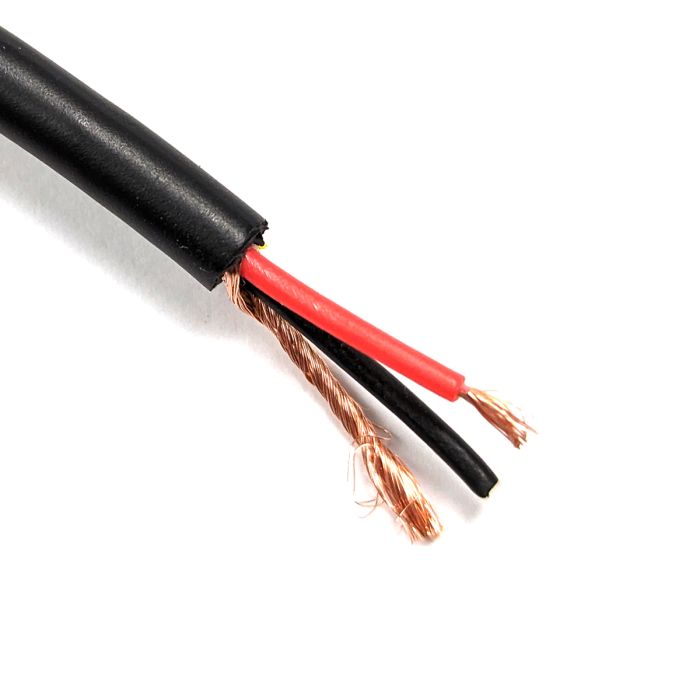

Kelsey ATM Mini Microphone Patch Cable - Black

Kelsey ATM mini microphone cable was created to meet the demand for top-quality professional microphone cable while retaining an ultra-low profile for patchbay wiring.

The oxygen-free copper twisted pair with helical copper screen ensures exceptional performance, extremely low capacitance and low noise for accurate signal transmission.

The added Kevlar fillers eliminate microphony and increase core strength and flexibility without impairing audio detail.

The sturdy composite jacket easily endures the rigours of touring and studio use and is designed to fit low-profile connectors such as bantam jacks.

SKU: ATM Patch

Sold by the meter

Conductors
Material: Stranded oxygen-free copper
Size: 28 * 0.10mm (0.22 mm2) AWG 24

Insulation
Material: PE
Diameter: 1.5mm +/-0.05mm
Colour: Black, Red

Screen
Spiral Screen: 0.10mm OFC, coverage min 90%

Outer Jacket
Material: Soft PVC
Colours:
     - Black, matt finish, RAL 9005
     - Red, matt finish, RAL 3000
Overall Diameter: 4.6mm +/-0.20mm
Shore hardness (A): 65 +/-3
Weight kg/metre: 0.028
Drum Sizes: 500m, 100m, cut lengths
Order Codes: KC.PATCH-BLK (Black) KC. PATCH-RED (Red)

Technical Data
Test voltage: 1.2kV at 50Hz, effective for 1 minute
Insulation Resistance Min: 100M Ohm/Km at 20°C
Conductor Resistance Max: 86 Ohm/Km at 20°C
Temperature Rating: Static: -30°C to +70°C
Operating: -10°C to +70°C

Capacitance
C/C: 75pF/m @ 1kHz
C/S: 125pF/m @ 1kHz

Operating voltage
Max: 50/75V AC/DC

RoHS Compliant
Technical Information
Weight 33g
Finish Black
