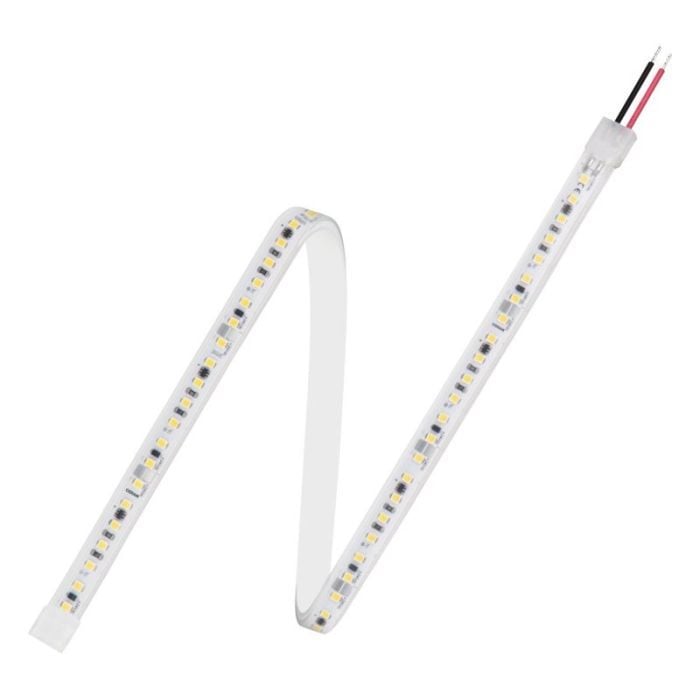

Led Warm White Tfp2000s-g1-827-05 Shortpitch 5m/reel 27k 24v Ip66 4062172134576
Osram
In stock
Part No
LEDTFP2000SG1827
TFP2000S-G1-827-05
TEC FLEX PROTECT IP66 family
EAN: 4062172134576
Product family benefits
High homogeneity thanks to small LED pitch
Pre-wired LED strip, simple and quick plug-and-play installation
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Type of protection: IP00
Dimmable (with suitable PWM dimming methods)
Equipment / Accessories
Simplified connection with optional matching CONNECTsystem LEDLF2PINIPSC
Flexessories: a complete set of aluminum channels with diffusers and lenses
Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
Technical Data
Electrical data:
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 15.5 W
Rated wattage (per 5m reel): 77.50 WInput voltage range: 23…25 V
Accidental reverse input voltage protection up to: 25 V
Photometrical data:
Light color LED: White
Nominal light output per meter: 1690 lm
Total useful luminous flux (per 5m reel): 8450 lm
Color rendering index Ra: 80Luminous efficacy: 109 lm/W
Light color (designation): Warm White
Color temperature: 2700 K
Light technical data:
LED pitch: 7.14 mm
Rated beam angle (half peak value): 120.00 °
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s
LED pitch: 7.14 mm
Rated beam angle (half peak value): 120.00 °
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s
LED module information:
Number of LEDs per meter: 140
Number of LEDs per smallest unit: 7
Number of LEDs per meter: 140
Number of LEDs per smallest unit: 7
Dimensions & weight:
Length: 5020 mm
Length – smallest unit: 50.0 mm
Product weight: 278.00 gCable cross-section, input side: 0.5 mm²
Width: 11.1 mm
Height: 4.10 mm
Temperatures & operating conditions:
Performance temp. acc. to IEC 62717: 43 °C
Temperature range in operation at Tc point: -25…80 °C
Ambient temperature range: -25…+50 °C
Temperature range at storage: -30…85 °C
Lifespan:
Rated lamp life time: 50000 h
Nominal lamp life time: 50000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles: 30000
Rated lamp life time: 50000 h
Nominal lamp life time: 50000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles: 30000
Additional product data:
ID of contained light source: LS_SHZ_601069
Capabilities:
Dimmable: Yes
Lowest bending radius: 50 mm
Self-adhesive: Yes
With connection set: No
With end piece: Yes
Dimmable: Yes
Lowest bending radius: 50 mm
Self-adhesive: Yes
With connection set: No
With end piece: Yes
Certificates & standards:
Standards: CE/ENEC/EAC/SASO 2927:2019
Type of protection: IP66
Energy efficiency class of the contained light source: FLogistical data:
Commodity code: 853951000000
Environmental information:
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 11-01-2023
Primary Article Identifier: 4062172134576
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
| LED reel/strip length | 5m |
|---|---|
| Product Type | LED strips |
| LEDs per meter | 140 |
| LED strip cutting point | Every 50mm |
| Colour Rendering Index (CRI) | >80 |
| Warranty | 5 yrs |
| LED Strip width | 11.1mm |
| LED strip type | Standard SMD |
| Colour appearance | Warm White |
| Colour temperature (CCT) | 2700K |
| Input voltage | 24V |
| Light output (Lumens per meter) | 1501-2000lm |
| Power consumption | 15-20W/m |
| LED Protection type | IP66 |
| Weight | 280g |
