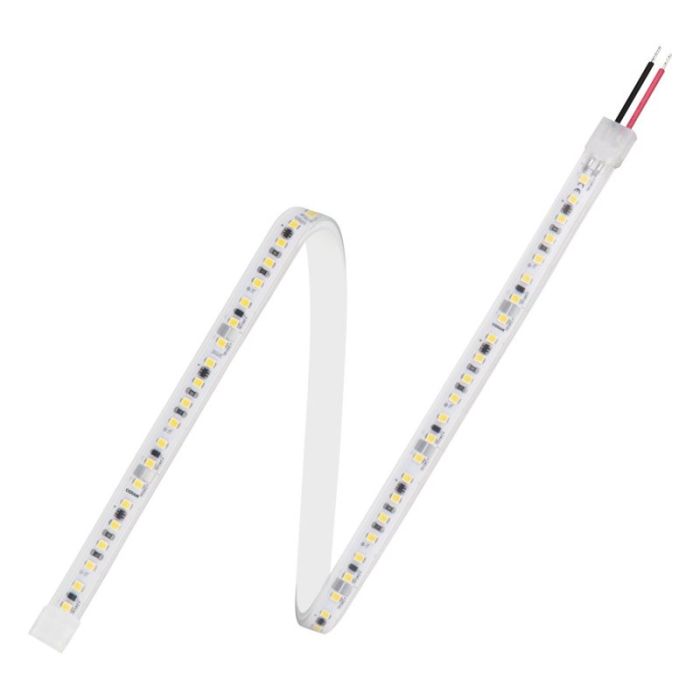

Led Tfp1000s-g1-827-05 Shortpitch 5m/reel 27k 24v Ip66 4062172134378

TFP1000S-G1-827-05

EAN: 4062172134378

Product family benefits
High homogeneity thanks to small LED pitch
Pre-wired LED strip, simple and quick plug-and-play installation
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Type of protection: IP00
Dimmable (with suitable PWM dimming methods)

Equipment / Accessories
Simplified connection with optional matching CONNECTsystem
Flexessories: a complete set of aluminum channels with diffusers and lenses
Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE

Technical Data

Electrical data
Nominal voltage: 24.0 V
Type of current: DC
Rated wattage: 45.00 W
Input voltage range: 23…25 V
Accidental reverse input voltage protection up to: 25 V

Photometrical data
Light color LED: White
Color rendering index Ra: 80
Luminous efficacy: 114.4 lm/W
Light color (designation): White

Dimensions & weight
Length: 5000 mm
Product weight: 278.00 g
Cable cross-section, input side: 0.5 mm²
Width: 11.1 mm
Height: 4.10 mm

Temperatures & operating conditions
Temperature range in operation at Tc point: -25…80 °C
Temperature range at storage: -30…85 °C

Additional product data
Predecessor EAN: 4062172091084
ID of contained light source: LS_SHZ_600354

Certificates & standards
Standards: CE/ENEC/EAC
Energy efficiency class of the contained light source: F

Logistical data
Commodity code: 853951000000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 11-01-2023
Primary Article Identifier: 4062172134378
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
