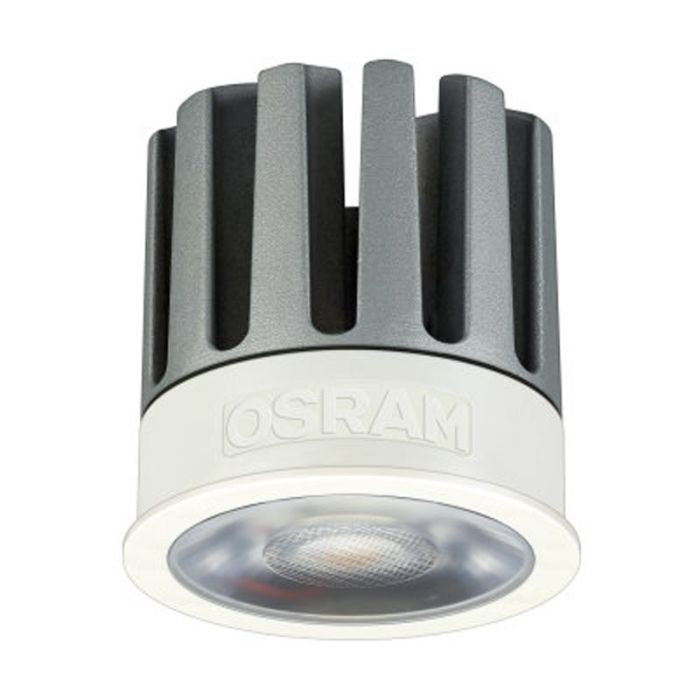

Led Pl-cn50-cob-1400-927-15d-G2 Fs1 Prevaled Coin Cob 50 4062172227148


Part No
£13.27 £11.06
In stock
EAN: 4062172227148 Priced per unit; available in any quantity. For best LED driver to match your requirements please see listing below. Where the output current of the driveer is not a fixed value but...

EAN: 4062172227148

Priced per unit; available in any quantity.

For best LED driver to match your requirements please see listing below.
Where the output current of the driveer is not a fixed value but a range, specific steps have to be taken to setup a fixed 350mA output current. Please get in touch for more information.

LEDOTE13350PC (switched or mains dimmable)
LEDOTE18350PC (switched or mains dimmable)

Accessories available (Suitable only for PrevaLED 50mm coins):

LEDCOB50G2BC - Black Cover
LEDCN50RR - White Round Ring

Product family features:
Color consistency < 2 SDCM
TM30 compliant
High flux output up to 1500 lm
Beam angle: 15°, 24°, 40°
Type of protection: IP20

Product family benefits:
Compatible with conventional MR16 lamps
Precise optical control and free from multi-shadow issue
Replaceable front cover to maximize optics flexibility and future extension
Dual mode options in High-Output (HO) and High-Efficacy (HE)

Areas of application:
Retail, shop, restaurant, hospitality
High-end residential
Suitable for indoor applications
Connecting multiple modules in parallel on one LED driver is not permitted
Connecting multiple modules in series on one LED driver is not recommended
Do not use in sealed fixtures
Avoid covering the lens with dust or any object

Electrical data:
Nominal current: 0.35 A
Nominal voltage: 34.4 V
Type of current: DC
On-mode power: 12.2 W
Energy consumption in on-mode [GMS]: 12.1 kWh/1000h

Photometrical data:
Luminous efficacy: 87 lm/W
Light color (designation): 2700 K
Peak luminous intensity [GMS]: 7182
Color rendering index Ra: 90
Useful luminous flux (Φuse) [GMS]: 981 lm
Colour consistency (McAdam ellipses) [GMS]: 2

Correlated color temperature CCT [GMS]: 2700 K

Beam Angle: 15 Degree

Light technical data:
Starting time: < 0.5 s
Warm-up time (60 %): < 2.00 s

Dimensions & weight:
Diameter: 50.0 mm
Product weight: 90.00 g
Width: 50 mm
Length: 50 mm
Height: 55 mm

Colors & materials:
Heatsink color: Grey

Temperatures & operating conditions:
Performance temp. acc. to IEC 62717: 70 °C
Maximum temperature at tc test point: 90 °C
Ambient temperature range: -25…+40 °C
Temperature range at storage: -40…80 °C

Number of switching cycles: 15000
L70B50 lifetime [GMS]: 50000 h
Lumen maintenance factor LMF [GMS]: 96

Additional product data:
Product remark: Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see relevant table)/For current photometric data and important safety, installation and application information. All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values/Tolerance for optical and electrical data: +/-10%
Lighting technology used [GMS]: LED

Certificates & standards:
Standards: Acc. to IEC 62471/Acc. to EN 60598-1/Acc. to EN 60529/Acc. to EN 55015/Acc. to EN 61547/Acc. To EN62031 IEC 605981/CE
Energy efficiency class: F
Type of protection: IP20

Logistical data:
Commodity code: 853951000000

Environmental information:
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 20-05-2022
Primary Article Identifier: 4062172227162
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained

Technical Information
Weight 90g
