Led Warm White Lfd800t-g1-827-06 Diffuse 800 Top 24v 4052899581906
Osram
In stock
Part No
LEDLFD800T827

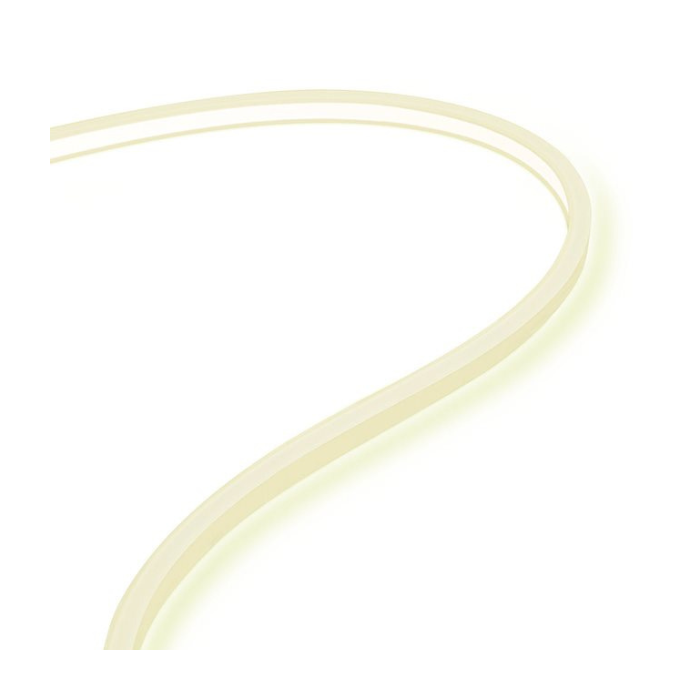

LINEARlight FLEX DIFFUSE 800 top LED modules for professional and industrial applications
Osram LFD800T -G1-827-06
Supplied with 1 pre-fitted power connector (FX-DCS-G1-CM2PF-IP67-0500) LEDFXDPF
Product benefits:
IP67 protection with high performance silicone
Outdoor use possible: UV and salt mist resistant (UV acc. to ISO 4892-2 - Method A, salt mist acc. to IEC 60068-2-52 severity 1)
Product features:
Diffused light lines without visible spots
Flexible and cuttable module to support design freedom
Long operational length per single power feed possible (up to 6m)
Ideal for luminaire designs
Extra strong self-adhesive backside for easy mounting
24V technology for easy dimensioning
Recommended in system use with OPTOTRONIC
Increased reliability due to single piece reel-to-reel technology
Dimmable with PWM technology
Areas of application:
Individual and customized luminaires
Organic shaped luminaires
Architectural Integration e.g. coves, walls
Object integration e.g. handrails
Signage and illuminated advertising
Accessories available:
IP67 connector with 500mm tail LEDFXDPF
IP67 connector with 5000mm tail LEDFXDPF5M
IP67 corner joiner with 190mm of cable in between LEDFXDPJ
IP67 Single ended silicone end cap for sealing ends LEDFXDTEC
IP67 Double ended silicone end cap to but and allow continuous run of light LEDFXDTEC
Kit bag with 5 feeders, 10 single ended silicone end caps and a small tube of silicone glue LEDFXDTFE
Kit bag with 5 joiners, 10 single ended silicone end caps and a small tube of silicone glue LEDFXDTJK
Large tube of silicone glue to use together with silicone end caps to seal ends LEDFXDGL
Fixed mounting bracket U shaped LEDFXDTMB
Fixed mounting bracket U shaped with additional wing LEDFXDTMBL
IP67 connector with 500mm tail LEDFXDPF
IP67 connector with 5000mm tail LEDFXDPF5M
IP67 corner joiner with 190mm of cable in between LEDFXDPJ
IP67 Single ended silicone end cap for sealing ends LEDFXDTEC
IP67 Double ended silicone end cap to but and allow continuous run of light LEDFXDTEC
Kit bag with 5 feeders, 10 single ended silicone end caps and a small tube of silicone glue LEDFXDTFE
Kit bag with 5 joiners, 10 single ended silicone end caps and a small tube of silicone glue LEDFXDTJK
Large tube of silicone glue to use together with silicone end caps to seal ends LEDFXDGL
Fixed mounting bracket U shaped LEDFXDTMB
Fixed mounting bracket U shaped with additional wing LEDFXDTMBL
EAN: 4052899581906
Technical data:
Nominal voltage: 24 V
Rated wattage: 69.2 W
Reverse Voltage: 25 V
Input voltage range: 23-25 V
Nominal wattage per meter: 11.5 W
Luminous efficacy: 65.1 lm/W
Colour temperature: 2700 K
Colour rendering index Ra: >80
Colour appearance: Warm White
Luminous flux per reel: 4500 lm
Luminous flux per meter: 750 lm
Beam angle: 120 Deg
Number of LEDs per module: 840
Number of LEDs per meter: 140
Length: 6000 mm
Width: 14.1 mm
Height: 10.8 mm
Product weight 1040 g
Temperature range in operation: -20 to +65 C
Lifespan (L70/B50): 50000 h
Dimmable: Yes
Dimming method: PWM
Lowest bending radius: 100 mm
With end piece: No
With connection set: Yes
Self-adhesive: Yes
Standards: CE/ENEC/10 VDE/EAC/UL Recognized component according UL 8750
| Weight | 1.31kg |
|---|
