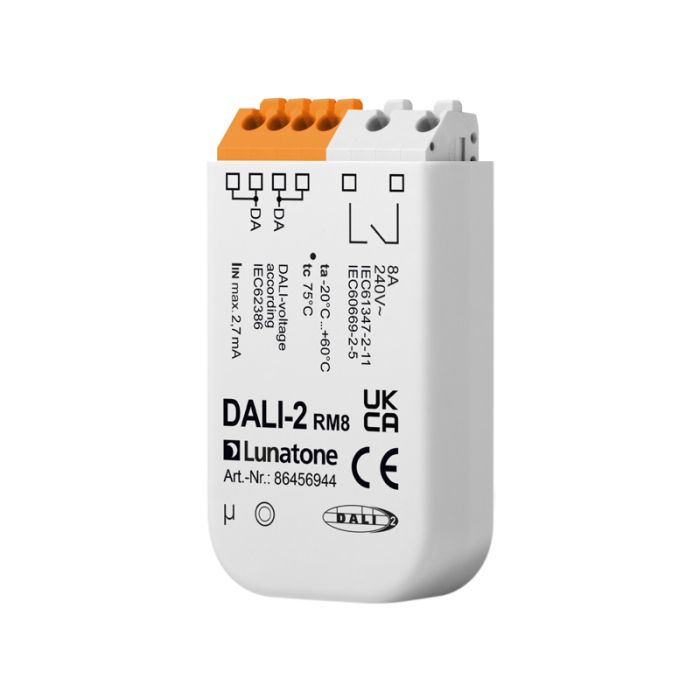

DALI-2 Relay Module for the integration of non-dimmable loads in DALI lighting systems 86456944
Lunatone
Part No
LEDDALI2RM8
£83.82
£69.85
In stock
DALI-2 Relay Module for the integration of non-dimmable loads in DALI lighting systems The DALI-2 RM8 provides a relay contact that can be controlled via the DALI bus. In this way, loads without a...
DALI-2 Relay Module for the integration of non-dimmable loads in DALI lighting systems
The DALI-2 RM8 provides a relay contact that can be controlled via the DALI bus. In this way, loads without a DALI input can be easily integrated into a DALI circuit. Permanent loads up to 2kW can be switched via DALI commands. The purposeful switching in voltage zero crossings, enables an increase of the device lifetime. Power-up mode and system-failure settings can be configured using the DALI Cockpit PC Software.
The product range of RM8 and RM16 also includes versions with integrated in-rush current limitation, various housing designs and variations with make contact or changeover contact.
Product features:
Designed and made in the EU
Max nominal load of 1000VA
Compact housing for back box installation
Product family overview:
Compact relay module for the direct control of 230V AC loads via DALI
Ballasts without DALI-input can be simply integrated in a DALI lighting control system. The loads can then be switched ON and OFF by DALI commands
The DALI RM8/16 module fulfills the requirements for DALI Device Type 7 - switching function (firmware 2.0 and higher)
Configurable Power-Up and System-Failure behaviour
Free DALI-Cockpit software package for configuration of DALI-systems and Lunatone DALI components
The RM 8/16 is supplied directly by the DALI signal line
Zero cross switching
The DALI RM 8/16 module acts like any conventional DALI ballast, and can be addressed and configured accordingly.
Article number: 86456944 (Back box version)
Electrical data:
Supply: via DALI-line
Typ. current consumption: 2.7mA
Relay output switch on/off voltage: 250Vac
Max. nominal load circuit breaker: 1000VA (6A max)
Max. breaking current: 12A
Max. inrush current: 60A
Max. continuous current: 8A
Switching method: Zero cross switching
Type of relay contact: 1 normally open
Switching operations at nominal load, resistive: >10x5
Maximum switching frequency: 1Hz
Input: DALI
Number of used DALI addresses: 1
Technical data:
Behaviour at Power Up: programmable: ON/OFF/no Change
Behaviour at System failure: programmable: ON/OFF/no Change
Storage and transportation temperature: -20°C +75°C
Operating ambient temperature: -20°C +60°C
Protection class: II in intended use
Protection degree housing: IP40
Protection degree terminals: IP20
Connecting wire cross section: 1.5 sqmm
Dimensions: 59mm x 33mm x 15mm
The DALI-2 RM8 provides a relay contact that can be controlled via the DALI bus. In this way, loads without a DALI input can be easily integrated into a DALI circuit. Permanent loads up to 2kW can be switched via DALI commands. The purposeful switching in voltage zero crossings, enables an increase of the device lifetime. Power-up mode and system-failure settings can be configured using the DALI Cockpit PC Software.
The product range of RM8 and RM16 also includes versions with integrated in-rush current limitation, various housing designs and variations with make contact or changeover contact.
Product features:
Designed and made in the EU
Max nominal load of 1000VA
Compact housing for back box installation
Product family overview:
Compact relay module for the direct control of 230V AC loads via DALI
Ballasts without DALI-input can be simply integrated in a DALI lighting control system. The loads can then be switched ON and OFF by DALI commands
The DALI RM8/16 module fulfills the requirements for DALI Device Type 7 - switching function (firmware 2.0 and higher)
Configurable Power-Up and System-Failure behaviour
Free DALI-Cockpit software package for configuration of DALI-systems and Lunatone DALI components
The RM 8/16 is supplied directly by the DALI signal line
Zero cross switching
The DALI RM 8/16 module acts like any conventional DALI ballast, and can be addressed and configured accordingly.
Article number: 86456944 (Back box version)
Electrical data:
Supply: via DALI-line
Typ. current consumption: 2.7mA
Relay output switch on/off voltage: 250Vac
Max. nominal load circuit breaker: 1000VA (6A max)
Max. breaking current: 12A
Max. inrush current: 60A
Max. continuous current: 8A
Switching method: Zero cross switching
Type of relay contact: 1 normally open
Switching operations at nominal load, resistive: >10x5
Maximum switching frequency: 1Hz
Input: DALI
Number of used DALI addresses: 1
Technical data:
Behaviour at Power Up: programmable: ON/OFF/no Change
Behaviour at System failure: programmable: ON/OFF/no Change
Storage and transportation temperature: -20°C +75°C
Operating ambient temperature: -20°C +60°C
Protection class: II in intended use
Protection degree housing: IP40
Protection degree terminals: IP20
Connecting wire cross section: 1.5 sqmm
Dimensions: 59mm x 33mm x 15mm
| Weight | 20g |
|---|
