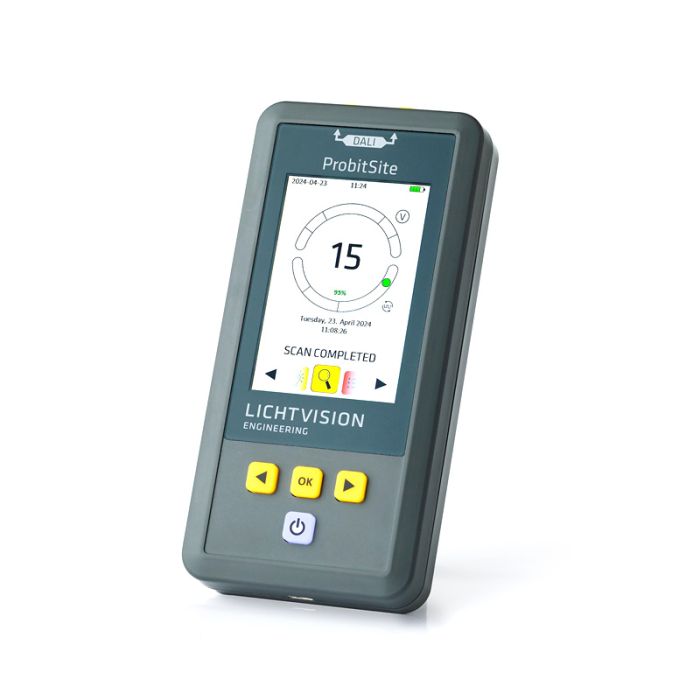

ProbitSite DALI-2 Multimeter PBSV1/0 4262466940009

We understand that the tool needs to be as easy to use as a multimeter. That’s why the ProbitSite | The DALI Multimeter was developed, by combining over 25 years of DALI expertise into one simple handheld device. Simply connect the ProbitSite to the DALI lines, and it will automatically detect any problem—making DALI debugging easy.

The ProbitSite can run on both configured and new systems.
Multi-Master Application Controllers will be handled by the ProbitSite with the standard commands provided to mute other controllers.

Only single(!) Master Application Controllers need to be switched off or physically disconnected beforehand. The DALI standard defines that these devices cannot process additional commands on the bus.

Product capabilities:
 - DALI installation check – provides transparency for any DALI installation, ensuring its quality.
 - Handheld DALI tester – Use SmartScan to recognize and read each device without altering the configuration.
 - Prove and Document Functionality – Demonstrate and document the proper functioning of the DALI installation, avoiding the need for return visits.
 - Signal Quality Measurement – ProbitSite measures the quality of the DALI signal, making it ideal for DALI debugging.
 - Identify Non-Certified Devices – Detect devices that are not DALI-certified. ProbitSite automatically compares installed DALI devices with the DiiA database of certified products—a helpful starting point when issues arise.

 - Integrated DALI Power Supply – Thanks to the integrated power supply, ProbitSite works on any installation.

 - ProbitBench Compatibility – The ProbitSite is compatible with the ProbitBench software, enabling additional functions.

 - Battery-operated with robust housing and low weight, this DALI tool is built for use on-site.

Product features:
3.5" high luminance display
Smart Scan on DALI bus
Certification status & signal check
Automated protocol
Integrated Bus Power Supply, min. 190mA, max. 250mA
Powered by built-in high-capacity battery

General information:
Type: ProbitSite
Article number: PBSV1/0
GTIN: 4262466940009

Technical Data:
Charging: 5VDC 500mA via USB-C
Built-in memory: >30000 bus reads
Connection DALI-bus: 4mm banana jacks
TFT-Display: 320 x 480 px with 600cd/sqmm
Runtime LiPo battery: Up to 8h
Size: 80mm x 165mm x 27mm
Weight: approx. 300g
Ingress Protection: IP20
Operating and storage temperature: +10 up to +35C

DALI Specifications:
250mA max. Current
190mA min. guaranteed Current
Continuous Short Circuit Protected - No dynamic Shutdown Mechanism
Complies with: IEC62386-101-103, 201-209, 216-224, 250-253, 301-306, 332-333
