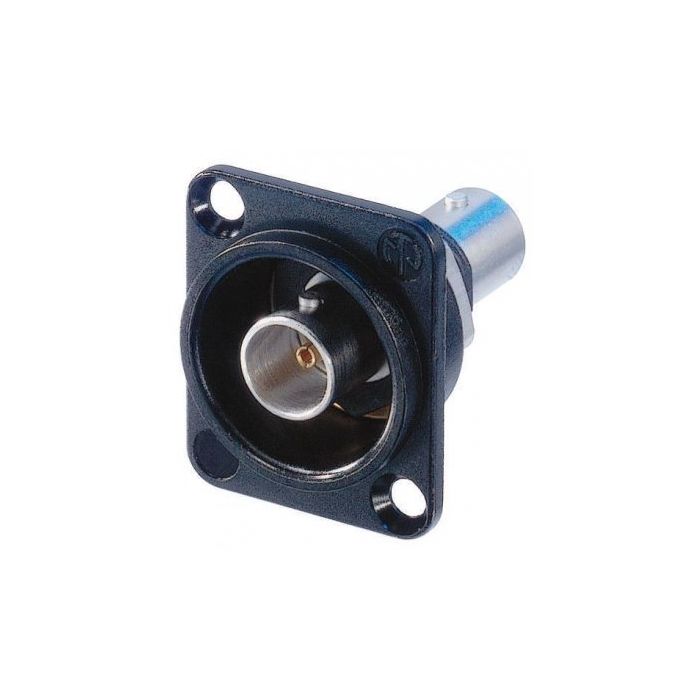

BNC D Chassis Black BNC-BNC Isolated NBB75DFIB

Neutrik

Part No
CONBB75DFIB
Was: £12.23 £10.19 Save: 10% Was: £11.02 £9.18 Save: 10% £11.02 £9.18
In stock
BNC D Chassis Black BNC-BNC Isolated This bulkhead connector offers a true 75 O design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and...
BNC D Chassis Black BNC-BNC Isolated

This bulkhead connector offers a true 75 O design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Features & Benefits:

- Isolated bulkhead jack, feed through in black D-shape housing
- Dielectric strength: 1500kVdc
- Impedance: 75 O
- Rated voltage: 500V
- Gold plated centre contact
- True 75 O design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connectionsconducted over the same panel ground potential)
- Standard D-shape housing black
- Recessed bulkhead jack - Colour coding possible

Finish: Black
Priced per connector: available in any quantity
Packing information: Box quantity = 100
Technical Information
Panel mount Isolated
Termination Feedthrough
Weight 40g
Finish Black
