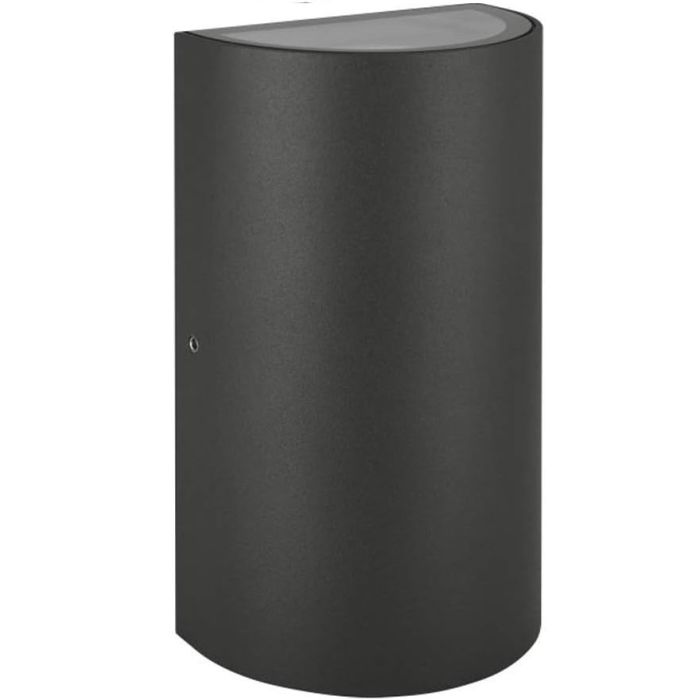

Outdoor Facade Updown 12W GY 3000K Warm White IP54 4058075075054

OUTDOOR FACADE UPDOWN 12 W 3000 K IP54 GY
Luminaires with classic shape and light outlet up and down

PRODUCT BENEFITS:
Energy-efficient thanks to LED technology
5 years guarantee
Easy and quick installation
Homogeneous light output

PRODUCT FEATURES:
Very bright and functional outdoor LED luminaires
Type of protection: IP54
Die-cast aluminum housing
Available in two housing colors: white and dark gray
Diffuser made of clear glass

AREAS OF APPLICATION:
Outdoor
Building facades
Decorative illumination

EAN: 4058075075054

TECHNICAL DATA

Electrical data:
Nominal wattage 12.00 W
Nominal voltage: 220-240 V
Mains frequency: 50-60 Hz
Nominal current: 55 mA
Max. no. of lum. on circuit break. B16 A: 75
Max. no. of lum. on circuit break. C10 A: 96
Max. no. of lum. on circuit break. C16 A: 60
Power factor λ: > 0.5
Protection class: I
Operating mode: Mains voltage

Photometrical data:
Luminous flux: 700 lm
Luminous efficacy: 60 lm/W
Color temperature: 3000 K
Light color (designation): Warm White
Color rendering index Ra: ≥80
Standard deviation of color matching: < 6 sdcm
Photobiological safety group acc. to EN62778: RG0
Photobiological safety group acc. to EN62471: RG0
Beam angle: 280 °

Dimensions & weight:
Length: 55.0 mm
Width: 90.0 mm
Height: 160.0 mm
Product weight: 480.00 g

Colors & materials:
Product color: Gray
Housing color: Gray
Body material: Aluminum
Cover material: Glass
Mercury content: 0.0 mg

Application & Mounting:
Ambient temperature range: -20 to +40 °C
Type of connection: Screw terminal, 3-Pole
Type of protection: IP54
Protection class IK (shock resistance): IK06

Lifespan:
Lifespan L70/B50 at 25 °C: 30000 h
Number of switching cycles: 15000

Certificates & Standards:
Standards: CE
Ball shot safe: No
