PennBrite Brace Ball Corner with 30mm Offset on one leg

Be the first to review this product

Part No

C1082/04

Sales: 0191 416 1717 Enquire / Order

Description

PennBrite Zinc Brace Ball Corner with 30mm Offset on one leg only

Perfect for Lidmaker Applications: for use with Extrusion E0870-4M
Mates with C1082/01 Female Stackable PennBrite Zinc Brace Ball Corner with 30mm Offset on one leg only

3 Mounting Holes
Internal Radius: 0.8mm

Technical Information

Technical Information

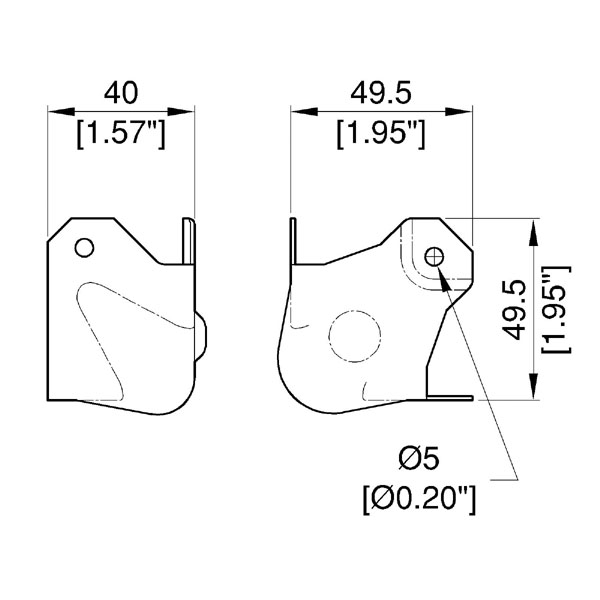

3D Model	View 3D Drawing
Offset	30mm
Mounting Holes	3
Internal Radius	0.8mm
Material	1.2mm Steel
Stackable	Male
Weight	46g
Height	40mm
Finish	Zinc

Q&A

Customer Questions

Please, mind that only logged in users can submit questions

Your question:

I have read and agree to the Privacy Policy

Your name:

get notification on email when the answer is ready

Your e-mail:

Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Enquire about this product

For price, stock availability and other information about this product, please contact us using the form below.

View All Brace Ball Corners

View All Corners

View All Flight Case Hardware

For price, stock availability and other information about this product, please contact us using the form below.

sgm_clp_1 div for segmentify

Part Number	Price	Finish	Height	Offset	Stackable	Mounting Holes	Internal Radius
C1082K Price: £1.31 £1.09 Finish: Black Height: 40mm Offset: 30mm Stackable: Mounting Holes: 3 Internal Radius: 0.8mm Drawing:	£1.31 £1.09	Black	40mm	30mm		3	0.8mm
C1082Z Price: £1.16 £0.97 Finish: Zinc Height: 40mm Offset: 30mm Stackable: Mounting Holes: 3 Internal Radius: 0.8mm Drawing:	£1.16 £0.97	Zinc	40mm	30mm		3	0.8mm
C1082S Price: £3.73 £3.11 Finish: Stainless Height: 40mm Offset: 30mm Stackable: Mounting Holes: 3 Internal Radius: 0.8mm Drawing:	£3.73 £3.11	Stainless	40mm	30mm		3	0.8mm
C1082/04 Price: Finish: Zinc Height: 40mm Offset: 30mm Stackable: Male Mounting Holes: 3 Internal Radius: 0.8mm Drawing:		Zinc	40mm	30mm	Male	3	0.8mm
C1082/01 Price: £1.72 £1.43 Finish: Zinc Height: 40mm Offset: 30mm Stackable: Female Mounting Holes: 3 Internal Radius: 0.8mm Drawing:	£1.72 £1.43	Zinc	40mm	30mm	Female	3	0.8mm

PennBrite Brace Ball Corner with 30mm Offset on one leg

FULL RANGE - Brace Ball Corners with 30mm Offset on one leg and 0.8mm Radius
