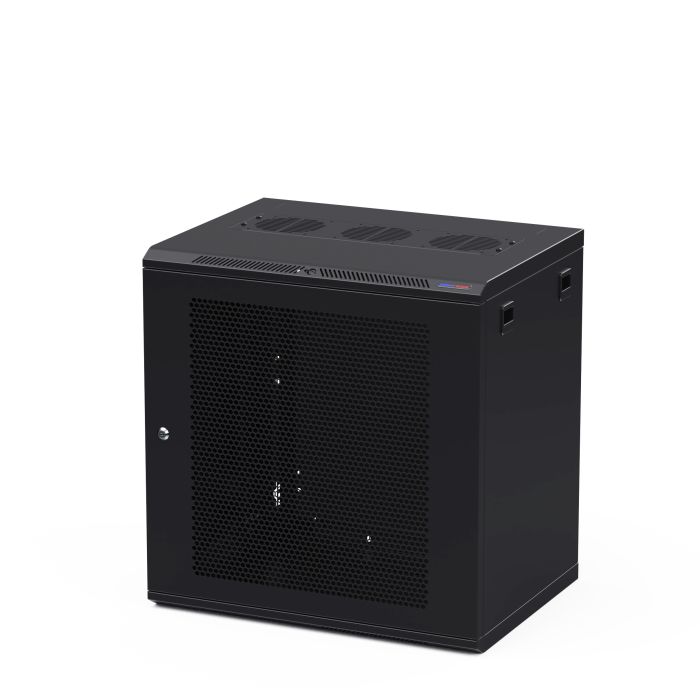

12U Pro Series Black Wall Mount 19” Rack with M6 Rails & Vented Door - 450mm Deep
In stock
Part No
R6412V-M6
The pre-assembled R6412V-M6 12U 450mm deep wall-mount rack cabinet with perforated steel front door is a space-saving solution ideal for AV, networking, IT, studios, offices, retail installations, and home network setups. Made from robust steel and featuring adjustable M6 threaded rack rails, a lockable vented steel front door, and removable side panels for easy equipment access and installation.
- Rack Size: 12U (19″ standard)
- Width: 600 mm
- Depth: 450 mm
- Height: 618mm
- Maximum Usable Depth: 408mm
- Hole Type: M6 threaded rack rail holes
- Door Type: Lockable vented steel front door
- Side Panels: Removable for easy access
- Mounting: Wall mount 19” rack cabinet - bracket included
- Load Capacity: 60kg
- Colour: Black
- Materials: Steel rack enclosure, perforated steel front door
- Weight: Approx. 27.5 kg
- Assembly: Pre-assembled
- Cable Management: Integrated cable management system
- Cable Access: Top, base, and rear
- Cable Knockouts: 1U knockouts on top and rear
- Cooling: 3 fan knockouts on top for optimal ventilation
Prefer a different setup? The same 12U cabinet is also available with a polycarbonate door (R6412-M6), in white (R6412V-W-M6), and with 10/32 rails (R6412V-1032).
| 3D Model | View 3D Drawing |
|---|---|
| Data Sheet | Datasheet |
| Type | R6400/R6600 Series |
| Size (U) | 12U |
| Weight | 27.5kg |
| Depth | 45cm |
| Door Type | Perforated Steel Door |
| Hole Types | M6 Threaded Holes |
| Height | 61.8cm |
| Finish | Black |
