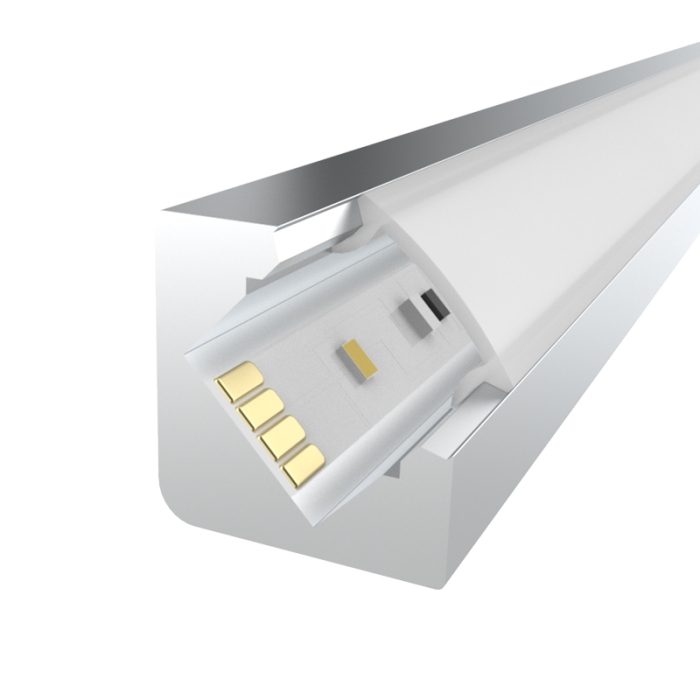

2m 19x19mm Corner Aluminium Profile Kit for up to 12mm Led strips
Part No
LEDAL22M2
£20.33
£16.94
In stock
Standard size corner extrusion for surface mounting installation for a
wide range of applications including: bathrooms, furniture shelves,
kitchens and many more.
Suitable for LED strips not wider than 12mm.
Included in the 2M KIT:
LEDAL22A2M - 2M anonized aluminium extrusion
LEDAL22DC2M - 2M diffuse cover
LEDAL22EC - 1x End Cap without hole
LEDAL22ECH - 1x End Cap with hole for cable entry
LEDAL22MB - 4x mounting brackets
Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 12 mm
Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.
Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.
Other options available:
LEDAL22 - 1M anodized version (grey)
LEDAL22M3 - 3M anodized version (grey)
Additional information:
Height: 19 mm
Length: 2000 mm
Material: Material: 6063 anodized aluminium
Warranty: 1 year
Width (Interior): 12.9 mm
Width (Exterior): 19 mm
Cover material: Polycarbonate
Cover assembly method: Push in
LED shown in images for illustration purposes and is not included in profile
wide range of applications including: bathrooms, furniture shelves,
kitchens and many more.
Suitable for LED strips not wider than 12mm.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.
How to install:
Screw
mounting brackets (most applications require 2 per meter) to the
mounting surface, push the aluminium base into the brackets, install
your led strips inside the profile and finally push-in the milky cover.
The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.
Looking
to get a dotless (no hot spots) lighting effect? Use together with the
5W COB FossLED strips in 2700K Warm White LEDFLCOB5W27K or 4000K
Cool/Neutral White LEDFLCOB5W4K
Need a more cost effective
solution? Try the Osram 8.6W Basic Flex in 2700K Warm White
LEDBF1000SG3827 or 3000K Warm White (slightly cooler)
LEDBF1000SG3830
Screw
mounting brackets (most applications require 2 per meter) to the
mounting surface, push the aluminium base into the brackets, install
your led strips inside the profile and finally push-in the milky cover.
The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.
Looking
to get a dotless (no hot spots) lighting effect? Use together with the
5W COB FossLED strips in 2700K Warm White LEDFLCOB5W27K or 4000K
Cool/Neutral White LEDFLCOB5W4K
Need a more cost effective
solution? Try the Osram 8.6W Basic Flex in 2700K Warm White
LEDBF1000SG3827 or 3000K Warm White (slightly cooler)
LEDBF1000SG3830
Included in the 2M KIT:
LEDAL22A2M - 2M anonized aluminium extrusion
LEDAL22DC2M - 2M diffuse cover
LEDAL22EC - 1x End Cap without hole
LEDAL22ECH - 1x End Cap with hole for cable entry
LEDAL22MB - 4x mounting brackets
Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 12 mm
Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.
Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.
Other options available:
LEDAL22 - 1M anodized version (grey)
LEDAL22M3 - 3M anodized version (grey)
Additional information:
Height: 19 mm
Length: 2000 mm
Material: Material: 6063 anodized aluminium
Warranty: 1 year
Width (Interior): 12.9 mm
Width (Exterior): 19 mm
Cover material: Polycarbonate
Cover assembly method: Push in
LED shown in images for illustration purposes and is not included in profile
| Length | 2m |
|---|---|
| Width | 19mm |
| Profile Type | Corner |
| Component Type | Complete Kit |
| Profile IP rating | IP20 |
| Max Strip Width | 12mm |
| Material | Aluminium 6063-T5 |
| Weight | 900g |
| Height | 19mm |
| Finish | Anodised Aluminium |
