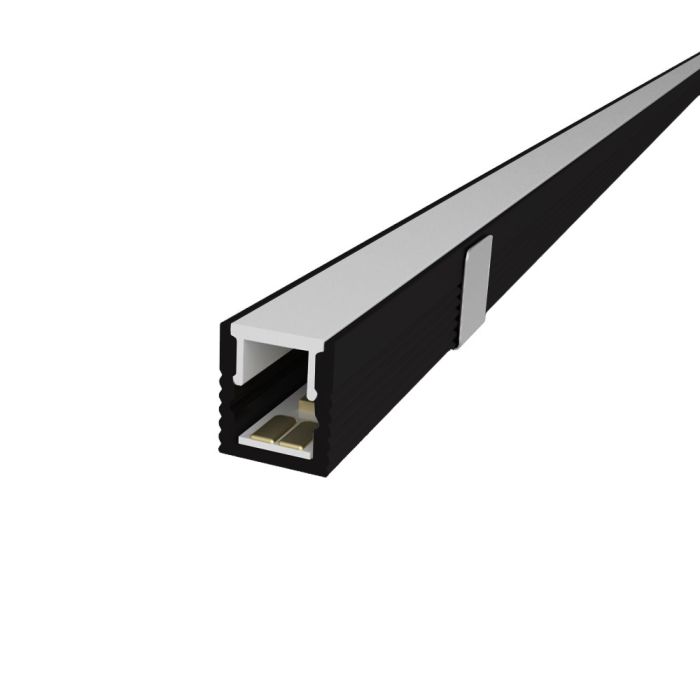

2m 8x9mm Black Mini Surface Mounted Profile

Mini surface mounted aluminium extrusion for creating small and professional LED lighting installations.
Suitable for LED strips not wider than 5mm.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Screw mounting brackets (most applications require 2 per meter) to the mounting surface, push the aluminium base into the brackets, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W Nano COB FossLED strips in 2400K Extra Warm White LEDFLCOBFCN5W24K or 2700K Warm White LEDFLCOBFCN5W27K.

Included in the 2M KIT:
LEDALMINI02A2MB - 2M black aluminium extrusion
LEDALMINI02MC2M - 2M milky white cover
LEDALMINI02EC - 1x White End Cap without hole
LEDALMINI02ECH - 1x White End Cap with hole for cable entry
LEDALMINI02MB - 4x Metal mounting brackets

Other options available:
LEDALMINI02 - 1M anodized version (grey)
LEDALMINI02M2 - 2M anodized version (grey)
LEDALMINI02M3 - 3M anodized version (grey)
LEDALMINI02B - 1M Black version

Features:
Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 5mm

Advantages:
Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:
Under stairs lighting;
Under cupboard lighting;
Retail Displays;
Cabinet lighting.

Specifications:
Height: 9 mm
Length: 2000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Base): 7.8 mm
Width (Internal): 5.5 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Push in
Aluminium base finish: RAL9004 Signal black

LED shown in images for illustration purposes and is not included in profile
