2m 53x13mm Mini Plaster-in profile for straight runs

Part No
£14.57 £12.14
In stock

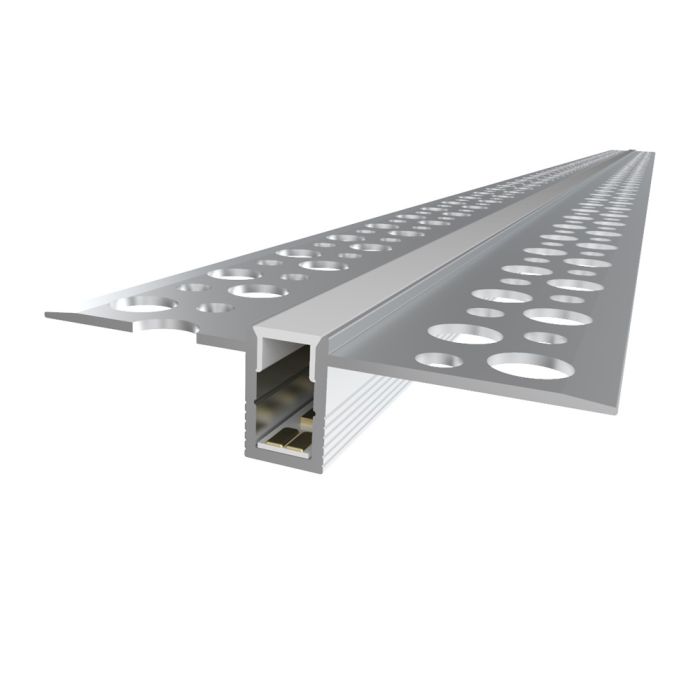

Mini Plaster-in aluminium extrusion for recessing light strip into a plasterboard wall or ceiling.
Suitable for LED strips not wider than 5mm. For straight runs of light!
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Fix/screw aluminium profile into your plasterboard, plaster the edges, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W Nano COB FossLED strips in 2400K Extra Warm White LEDFLCOBFCN5W24K or 2700K Warm White LEDFLCOBFCN5W27K

Need a more cost effective solution? Try the Penn Elcom 5mm Narrow Pitch LED strip in 2700K Warm White LEDCLSSN96927 or 3000K White White (Slightly Cooler) LEDCLSSN96930. These LED strips have 120LEDs/meter.

Included in the KIT:
LEDALMINI01A2M - 2M anodized aluminium extrusion
LEDALMINI01MC2M - 2M milky white cover
LEDALMINI01EC - 1x White End Cap without hole
LEDALMINI01ECH - 1x White End Cap with hole for cable entry

Other plaster-in profile available:
LEDALMINI01 - 1M anodized version (grey)
LEDALMINI01M3 - 3M anodized version (grey)

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 5mm

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:
Plasterboard in kitchens;
Plasterboard in rooms;
Plasterboard in corridors;
Plasterboard in meeting rooms.

Height: 12.5 mm
Length: 2000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Top with wings): 53 mm
Width (Base): 7.8 mm
Width (Internal): 5.3 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Push in

LED shown in images for illustration purposes and is not included in profile
Technical Information
Length 2m
Width 53mm
Profile Type Plaster-in
Component Type Complete Kit
Profile IP rating IP20
Max Strip Width 5mm
Material Aluminium 6063-T5
Weight 300g
Height 13mm
Finish Anodised Aluminium
