2m 11x10mm Mini Recessed Mounted Profile

Part No
£9.82 £8.18
In stock

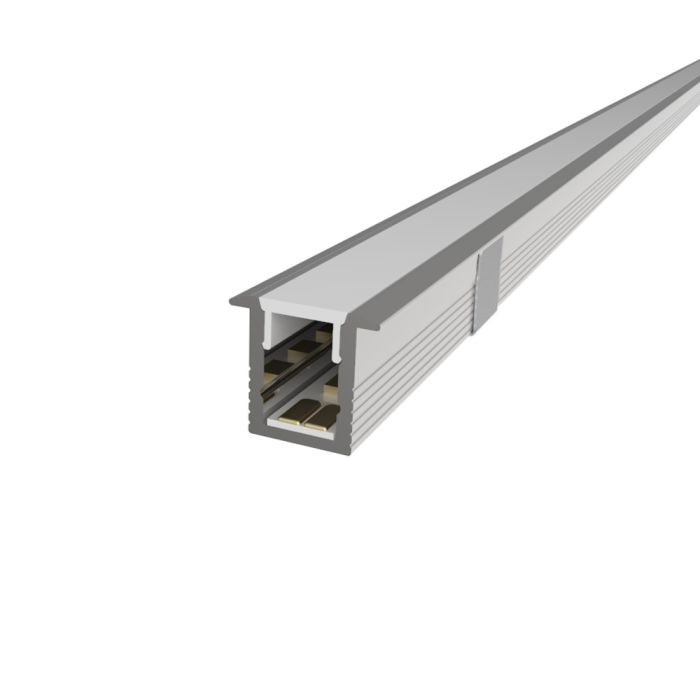

Mini recessed mounted aluminium extrusion for creating small and professional LED lighting installations.
Suitable for LED strips not wider than 5mm.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Screw mounting brackets (most applications require 2 per meter) to the mounting surface, push the aluminium base into the brackets, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W Nano COB FossLED strips in 2400K Extra Warm White LEDFLCOBFCN5W24K or 2700K Warm White LEDFLCOBFCN5W27K

Need a more cost effective solution? Try the Penn Elcom 5mm Narrow Pitch LED strip in 2700K Warm White LEDCLSSN96927 or 3000K White White (Slightly Cooler) LEDCLSSN96930. These LED strips have 120LEDs/meter.

Included in the 2M KIT:
LEDALMINI03A2M - 2M anodized aluminium extrusion
LEDALMINI03MC2M - 2M milky white cover
LEDALMINI03EC - 1x White End Cap without hole
LEDALMINI03ECH - 1x White End Cap with hole for cable entry
LEDALMINI03MB - 4x Metal mounting brackets

Other plaster-in profile available:
LEDALMINI03 - 1M anodized version (grey)
LEDALMINI03M3 - 3M anodized version (grey)

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 5mm

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:
Under stairs lighting;
Under cupboard lighting;
Retail Displays;
Cabinet lighting.

Height: 10 mm
Length: 2000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Base): 7.8 mm
Width (Internal): 5.5 mm
Width (TOP with wings): 11 mm
Cover material: Polycarbonate
Cover assembly method: Push in

LED shown in images for illustration purposes and is not included in profile
Technical Information
Length 2m
Width 11mm
Profile Type Recessed
Component Type Complete Kit
Profile IP rating IP20
Max Strip Width 5mm
Material Aluminium 6063-T5
Weight 200g
Height 10mm
Finish Anodised Aluminium
