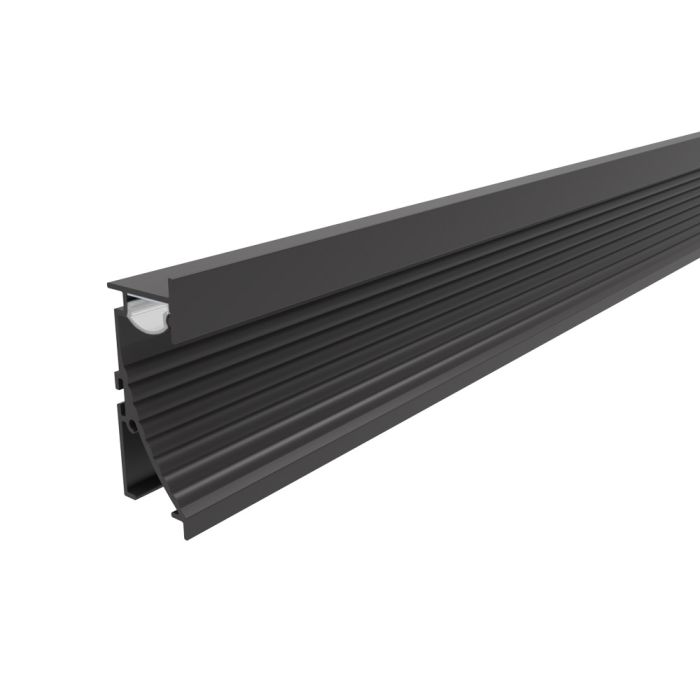

1m 25x70mm Black Wall Recessed Aluminium Profile Kit for up to 14mm Led strips

This new recessed aluminium extrusion is designed for mounting in indoor walls.
Suitable for LED strips not wider than 14mm and can be used in a variety of applications.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
This depends on the type and thickness of the wall.
1. Without any additional accessories for thicker walls (mainly bricks, concrete) where there will be wall behind the LED profile, cut the space required to accommodate the profile and push inside with the light source facing up or down, as shown in one of our images. Additional fixing via glue or counter sunk screws is recommended.
2. For thinners walls installations (wood, plasterboard, drywalls) the use of the mounting springs LEDAL10MS will be required.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W Nano COB FossLED strips in 2700K Warm White LEDFLCOB5W27K, 3000K Warm White LEDFLCOB5W3K or 4000K Cool White LEDFLCOB5W4K.

Need a more cost effective solution? Try the Osram Basic Flex in 2700K Warm White LEDBF400SG3827 or 3000K Warm White LEDBF400SG3830. These LED strips have 120LEDs/meter.

Included in the KIT:
LEDAL10A1MB - 1M black aluminium extrusion
LEDAL10DC1M - 1M diffuse cover
LEDAL10ECB - 2x Black End Caps with small hole for cable exit + 2 small screws

Other Wall profiles available:
LEDAL10 - 1M anodized version (grey)
LEDAL10M2 - 2M anodized version (grey)
LEDAL10M3 - 3M anodized version (grey)
LEDAL10M2B - 2M Black powder coated version
LEDAL10W - 1M White powder coated version
LEDAL10M2W - 2M White powder coated version

Features:
Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 14mm

Advantages:
Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:
Corridors;
Walls parallel to staircases;
Receptions.

Specifications:
Height: 70 mm
Length: 1000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Base): 24.6 mm
Width (Top): 23 mm
Width (Internal): 15.2 mm
Cover material: Polycarbonate
Cover assembly method: Push in
Aluminium base finish: RAL9004 Signal black

LED shown in images for illustration purposes and is not included in profile
