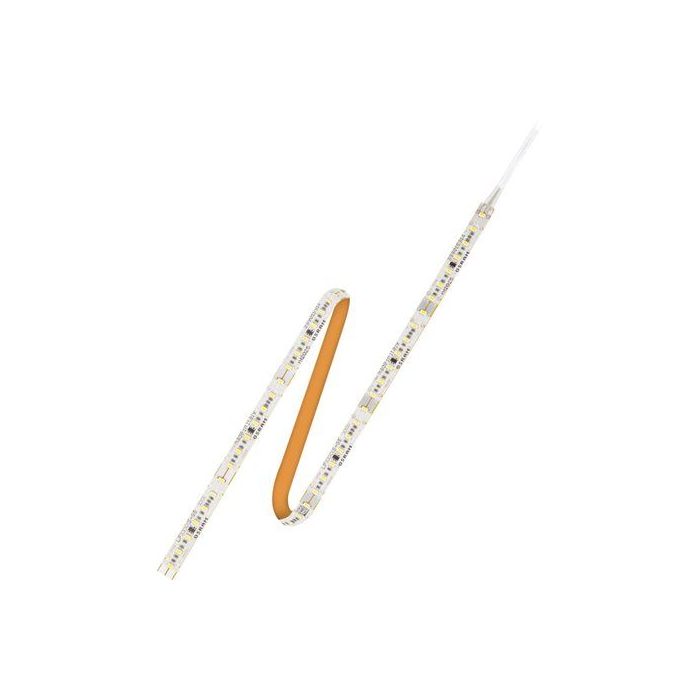

10m/reel Very Warm White Lf1200s-g5-925-10 L2 Shortpitch 27k 24v 6937186138897

Product family features:
24 V LED strips flexible and cuttable, 50 mm cut unit
Available variants: 800 lm/m 1200 lm/m 2000 lm/m / CRI Ra: 95+ 90+ and 80+
Up to 60,000 h L90/B10 with SDT technology, tested acc. To IEC 62717 on real LED strips
Stable light flux over length: active constant current regulators (ICs), PWM safe
Embedded automatic quick protection against accidental miswiring up to 25 V
Fully PWM dimmable from zero up to 2.5 kHz, audible noise free, suitable for quite places
Designed, engineered and manufactured and tested in Italy (ISO9001, ISO 17025, ACCREDIA, VDE)

Product family benefits:
Color uniformity better than 2 SDCM on the entire LED strip and between strips
Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
Accurate description of the color rendition of the light source acc. to IES TM-30-15
Excellent robustness: single reel manufacturing technology (no solder joints on strip)
Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE

Electrical data:
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 11.6 W
Rated wattage: 116.00 W
Input voltage range: 23…25 V
Accidental reverse input voltage protection up to: 25 V

Photometrical data:
Light color LED: White
Color rendering index Ra: 90
Luminous flux per meter: 1200 lm
Luminous efficacy: 103 lm/W
Light color (designation): Very Warm White
Color temperature: 2500 K

Light technical data:
LED pitch: 7.14 mm
Beam angle: 120 °
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s

LED module information:
Number of LEDs per meter: 140
Number of LEDs per smallest unit: 7

Dimensions & weight:
Length: 10000 mm
Length – smallest unit: 50.0 mm
Width: 8.00 mm
Height: 1.40 mm
Cable length: 500.0 mm
Product weight: 123.00 g
Cable cross-section, input side: 0.5 mm²

Temperatures & operating conditions:
Temperature range in operation at Tc point: -30…85 °C *
Ambient temperature range: -30…+50 °C 2)
Temperature range at storage: -40…85 °C
*Exceeding the maximum ratings will reduce expected life time or destroy the LED strip.

Lifespan:
Rated lamp life time: 60000 h
Number of switching cycles: 15000

Additional product data:
ID of contained light source: LS_TRV_286009

Capabilities:
Dimmable: Yes
Lowest bending radius 20 mm

Certificates & standards:
Standards: CE /ENEC /EAC /UL
Type of protection: IP00
Energy efficiency class of the contained light source: F

Logistical data:
Commodity code: 85395100000
