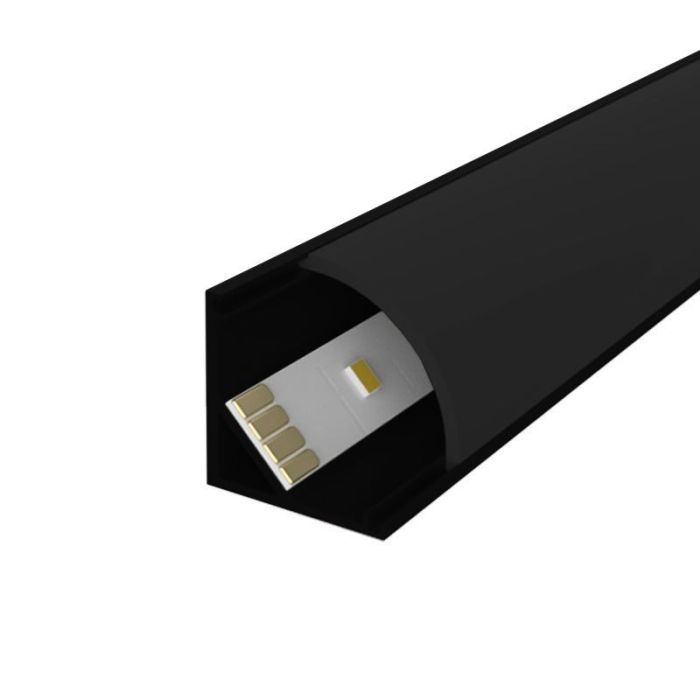

1m 16x16mm Black Base and Cover, Corner Aluminium Profile Kit for up to 10mm Led strips

Part No
£6.61 £5.51
In stock
Standard size corner extrusion for surface mounting installation for a wide range of applications including: bathrooms, furniture shelves, kitchens and many more.
Suitable for LED strips not wider than 10mm.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Screw mounting brackets (most applications require 2 per meter) to the mounting surface, push the aluminium base into the brackets, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W COB FossLED strips in 2700K Warm White LEDFLCOB5W27K or 4000K Cool/Neutral White LEDFLCOB5W4K

Need a more cost effective solution? Try the Osram 8.6W Basic Flex in 2700K Warm White LEDBF1000SG3827 or 3000K Warm White (slightly cooler) LEDBF1000SG3830

Included in the 1m KIT:
LEDAL03A1MB - 1M BLACK coated aluminium extrusion
LEDAL03BC1M - 1M BLACK cover
LEDAL03ECB - 1x Black End Cap without hole
LEDAL03ECHB - 1x Black End Cap with hole for cable entry
LEDAL03MB - 2x mounting brackets

Other options available:
LEDAL03 - 1M anodized version (grey)
LEDAL03M2 - 2M anodized version (grey)
LEDAL03M3 - 3M anodized version (grey)
LEDAL03M4 - 4M anodized version (grey)
LEDAL03B - 1M Black version
LEDAL03M2B - 2M Black version
LEDAL03W - 1M White version
LEDAL03M2W - 2M White version
LEDAL03M3BB - 3M Black base and black cover version
LEDAL03CB - 90Deg Corner Joining Bracket (Inner corner)
LEDAL03JB - In-line Joining Bracket (join any 2 lengths of extrusion)

+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 10 mm

+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support

Additional information:
Height: 16 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 10 mm
Base thickness: 0.8 mm
Cover material: PC
Cover assembly method: Clip-in
Aluminium base finish: black anodized
Black cover light transmission: approx. 30%

LED shown in images for illustration purposes and is not included in profile.
Technical Information
Length 1m
Width 16mm
Profile Type Corner
Component Type Complete Kit
Profile IP rating IP20
Max Strip Width 10mm
Material Aluminium 6063-T5
Weight 250g
Height 16mm
Finish Black
