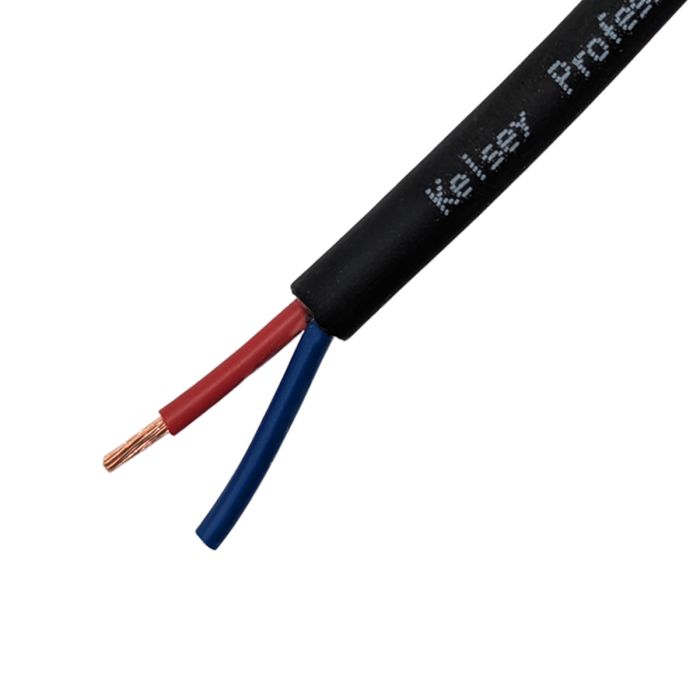

SPL OFC 2 Core x 1.5mm Touring Speaker Cable
Kelsey
Part No
CASK152
£1.82
£1.52
In stock
SPL OFC 2 Core x 1.5mm Touring Speaker Cable
- Professional speaker cables for touring, hire, and theatre, made with a durable, polymer jacket that stops any kinks or twists.
- Flexible core for high-frequency conductivity that ensures continious reliablity.
- Oxygen-free copper (OFC) with low resistance and capacitance, with colour-coded cores for quick ID.
- Easy to rig, even in cold conditions.
General Specification:
Conductors
Material: Stranded oxygen-free copper
Size: 30 * 0.25mm (1.5mm2) AWG 16;
Insulation
Material: PVC
Diameters: 2.42mm +/-0.05mm;
Shorehardness (A): 88 +/-3;
Colours: Blue, Red
Outer Jacket
Material: Soft PVC
Colour : Black, matt finish, RAL 9005
Overall Diameters: 6.2mm +/-0.20mm;
Shorehardness (A): 65 +/-3
Weight kg/metre: 0.064
Laying Centre: 2 cores with red/white marker thread
Technical Data
Test voltage: > 2kV at 50Hz, effective for 1 minute
Insulation Resistance Min.: 20M Ohm/Km at 20°C
Conductor Resistance Max.: 13.30 Ohm/Km at 20°C;
Temperature Rating: Static: -20°C to +70°C, Operating: -10°C to +70°C
Operating voltage: Max: 300/500V AC/DC (Not suitÂable as a mains cable) RoHS Compliant
Sold by the metre.
| Outer Diameter | 6.2mm |
|---|---|
| Weight | 64g |
| Core Size | 2 x 1.5mm |
| Finish | Black |
