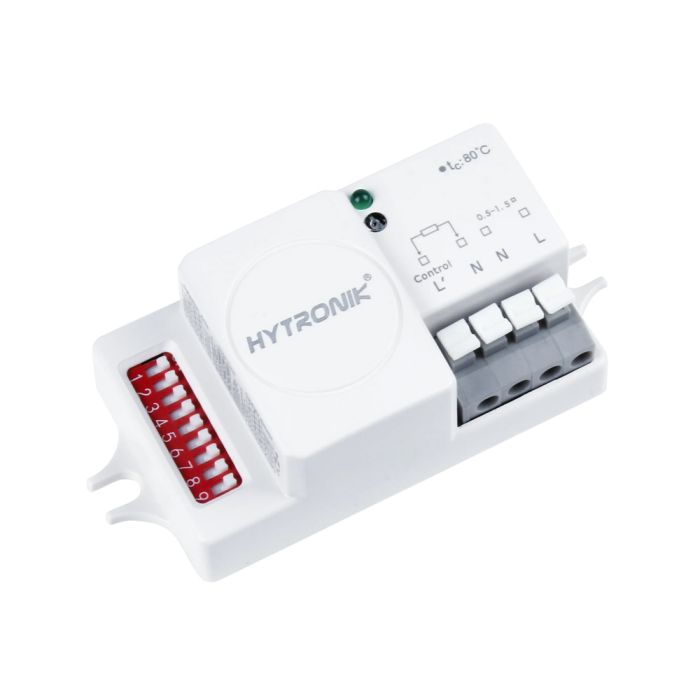

Sensor Microwave Motion - Economy Version HC005S
Hytronik
Part No
LEDHC005S
£17.94
£14.95
In stock
Sensor Microwave Motion - HC005S
Use for new luminaire designs and installations
The HC005S is a super-compact built-in HF sensor with On/Off control, featuring a DIP switch for adjusting detection range, hold time, and daylight threshold. It is equipped with loop-in and loop-out terminals for efficient installation and can work with Switch-dim control gear to achieve tri-level dimming.
Product Benefits:
Compact - Super compact size - ON/OFF Sensor
Simple - Daylight, detection range and holdtime configuration via Dip-Switch
Robust - Zero crossing detection circuit for increased relay life
Wiring - Loop-in and loop-out terminal for efficient installation
Warranty - 5 years
Product Applications:
For round shape luminaire up to 6m height
Office / Meeting rooms
Schools / Classroom
Accessories:
LEDSBMM - IP20 housing for dry indoor installations
LEDSBMM65 - IP65 housing for wet indoor our outdoor installations
Technical Specifications:
Input Characteristics
Mains voltage/frequency: 220-240 V, 50/60Hz
Switched power (capacitive): Max. 400 W
Switched power (resistive): Max. 800 W
Standby power: <0.5 W
Max withstandable in-rush current*: 80A@160μs
Warmming-up time: 10 s
*The Max withstandable in-rush current tested under 50% Ipeak /230Vac
Sensor Data:
Model No.: HC005S
Sensor principle: High Frequency (microwave)
Operation frequency: 5.8GHz +/- 75MHz
Transmission power: <0.2mW
Detection range*: Max. ( Ø x H) 12m x 6m
Detection angle: 30 ~ 150 Deg
Sensitivity: 10% / 30% / 50% / 75%/ 100%
Hold-time: 5s ~ 30min (selectable)
Daylight threshold: 2 ~ 50 lux, disabled
* For more details of detection range, please refer to “detection pattern” section.
Environment:
Operation temperature*: Ta: -35C ~ +70C
Case temperature (Max.): Tc: +80C
IP rating: IP20
*For usage in -35°C ~ -20°C environments, please refer to www.hytronik.com/download ->knowledge->Microwave Sensors - Precautions for Product Installation and Operation point 4) for more information.
Safety and EMC:
EMC standard (EMC): EN55015, EN61000
Safety standard (LVD): EN60669, AS/NZS 60669
Radio Equipment (RED): EN300440， EN301489, EN301489, EN62479
Certification: Semko, CB, CE, EMC, RED, RCM
Use for new luminaire designs and installations
The HC005S is a super-compact built-in HF sensor with On/Off control, featuring a DIP switch for adjusting detection range, hold time, and daylight threshold. It is equipped with loop-in and loop-out terminals for efficient installation and can work with Switch-dim control gear to achieve tri-level dimming.
Product Benefits:
Compact - Super compact size - ON/OFF Sensor
Simple - Daylight, detection range and holdtime configuration via Dip-Switch
Robust - Zero crossing detection circuit for increased relay life
Wiring - Loop-in and loop-out terminal for efficient installation
Warranty - 5 years
Product Applications:
For round shape luminaire up to 6m height
Office / Meeting rooms
Schools / Classroom
Accessories:
LEDSBMM - IP20 housing for dry indoor installations
LEDSBMM65 - IP65 housing for wet indoor our outdoor installations
Technical Specifications:
Input Characteristics
Mains voltage/frequency: 220-240 V, 50/60Hz
Switched power (capacitive): Max. 400 W
Switched power (resistive): Max. 800 W
Standby power: <0.5 W
Max withstandable in-rush current*: 80A@160μs
Warmming-up time: 10 s
*The Max withstandable in-rush current tested under 50% Ipeak /230Vac
Sensor Data:
Model No.: HC005S
Sensor principle: High Frequency (microwave)
Operation frequency: 5.8GHz +/- 75MHz
Transmission power: <0.2mW
Detection range*: Max. ( Ø x H) 12m x 6m
Detection angle: 30 ~ 150 Deg
Sensitivity: 10% / 30% / 50% / 75%/ 100%
Hold-time: 5s ~ 30min (selectable)
Daylight threshold: 2 ~ 50 lux, disabled
* For more details of detection range, please refer to “detection pattern” section.
Environment:
Operation temperature*: Ta: -35C ~ +70C
Case temperature (Max.): Tc: +80C
IP rating: IP20
*For usage in -35°C ~ -20°C environments, please refer to www.hytronik.com/download ->knowledge->Microwave Sensors - Precautions for Product Installation and Operation point 4) for more information.
Safety and EMC:
EMC standard (EMC): EN55015, EN61000
Safety standard (LVD): EN60669, AS/NZS 60669
Radio Equipment (RED): EN300440， EN301489, EN301489, EN62479
Certification: Semko, CB, CE, EMC, RED, RCM
| Weight | 50g |
|---|
