PCB Joiner 150mm for 8mm PRIMO High-Efficacy LED strip
Part No
LEDPL-PRIMO-8MM-JOIN
LED Strip to LED Strip 150mm Joiner
Max current 4A.
Cable: 20AWG standard wire.
Connector Width: 10mm
Used for 8mm 2-pin High-Efficacy PRIMO LED strip.
Max current 4A.
Cable: 20AWG standard wire.
Connector Width: 10mm
Made for PRIMO High-Efficacy LED strip 2700K - LEDPL-PRIMO-927-9W

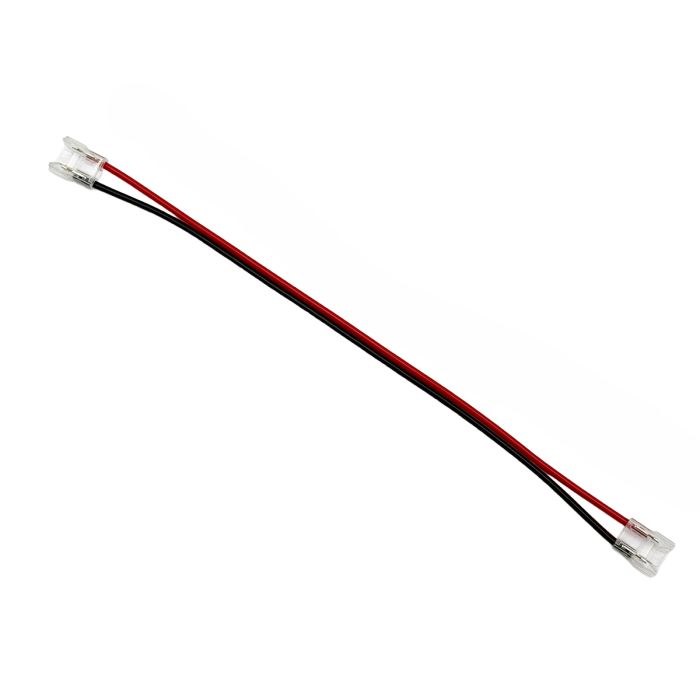

Penn Elcom LED joiner used to connect two runs of 10mm D2W LED tape. Comes with 150mm of cable tail in between (red/black).
Small dimensions ensure they fit into most of the Penn Elcom LED profiles.
Important Notes:
These corner joiners are used to go around corners or other bends. Just insert the
strip into the corresponding terminals and crimp with pliers to pierce
PCB components for a reliable connection
strip into the corresponding terminals and crimp with pliers to pierce
PCB components for a reliable connection
Not reusable!
Technical Specification:
Max current: 4 A
Max current: 4 A
Max load (@ 24V): 96 W
Cable: 20AWG standard wire
Dimensions (LxWxH, opened & without wires): 11.5 x 9.8 x 5.4 mm
Cable: 20AWG standard wire
Dimensions (LxWxH, opened & without wires): 11.5 x 9.8 x 5.4 mm
| Tipo de produto | LED strips accessories |
|---|---|
| Garantia | 5 yrs |
| Tipo de tira de LED | Standard SMD |
| Tipo de proteção de LED | IP20 |
| Peso | 4g |
