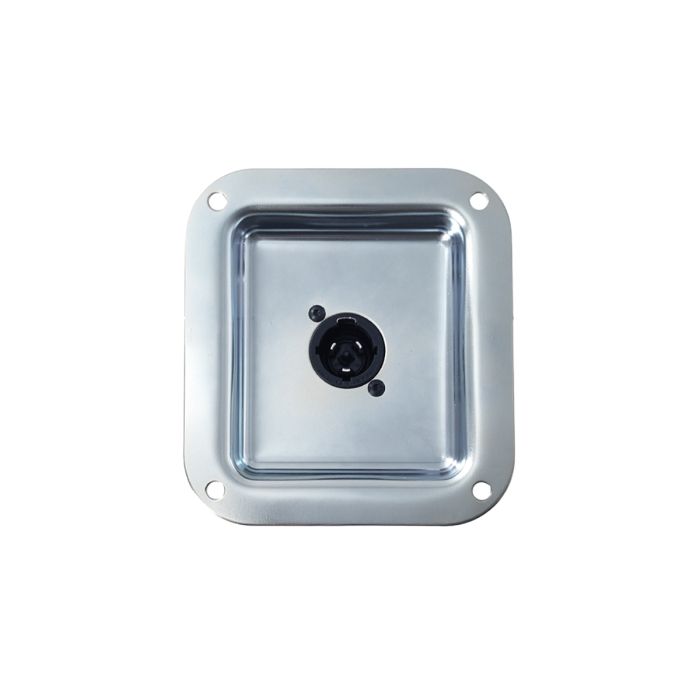

Small Zinc Recessed Dish with Neutrik powerCON TRUE1 Male Inlet
Part No
D0949-Z-T1M
Small Zinc Recessed Dish with Neutrik powerCON TRUE1 Male Inlet
As part of our loaded dish series, it offers an easy and reliable way to install and mount essential equipment in your flight case, console, furniture, or other setups.
Set in a D0949Z Small Black Dish for 1 x D-Series Connector, the D0949-Z-T1M is ideal for users seeking optimized Pro-Audio, Video, or Lighting network setups featuring the latest technology.
This dish includes:
1 x CONAC3MPXTRUE1 – Neutrik powerCON TRUE1 Mains Chassis Inlet CBC airtight - NAC3MPX-TRUE1
2 x Mounting Screws
1 x COMFD - M3 Mounting Frame For All D-Size Chassis MFD
CONAC3MPXTRUE1 Features
- Appliance inlet connector, single-phase chassis connector with CBC load-breaking capacity
- Completely airtight - +/- 50kpa during 1 min. with a pressure drop of max. 5Kpa
- Certified to ENEC, VDE, UL, and CSA standards
1 x COMFD - M3 Mounting Frame For All D-Size Chassis MFD
CONAC3MPXTRUE1 Features
- Appliance inlet connector, single-phase chassis connector with CBC load-breaking capacity
- Completely airtight - +/- 50kpa during 1 min. with a pressure drop of max. 5Kpa
- Certified to ENEC, VDE, UL, and CSA standards
| Dish Depth | 1/2" |
|---|---|
| Material | 1/16" Steel |
| Weight | 5.36oz |
| Connectors | powerCON TRUE1 |
| Finish | Zinc |
