Osram 2pin SC connector with 500mm cable tail for TecFlex & LinearLight G3 LED strips 4052899464735

FLEXESSORIES
FX -SC08-G2-CT2PF-0500

Power feeders to connect modules with single white and single monochromatic light
Use with all TecFlex G1, LF4000-G3, LF3000-G3, LF2000-G3, LF1200-G3, LF800S-G3, LF06A, LF05A2, LF06E, LF05E

Enjoy full flexibility in lighting design. Connect easily modules without any need of tools. The SLIMCONNECT SYSTEM is made for minimalistic integration into aluminum profiles and luminaires. Yet offering a strong retention force to the module and extra mounting support through the additional adhesive back on the connectors’ backside.

Key Features & Benefits:
Assembly without tools
Robust connection
Fits into SLIM TRACK
Adhesive tape on the back to support mounting
Keep LED pitch at board to board connection
Extension wires for connection across corners

EAN: 4052899464735

Technical data:

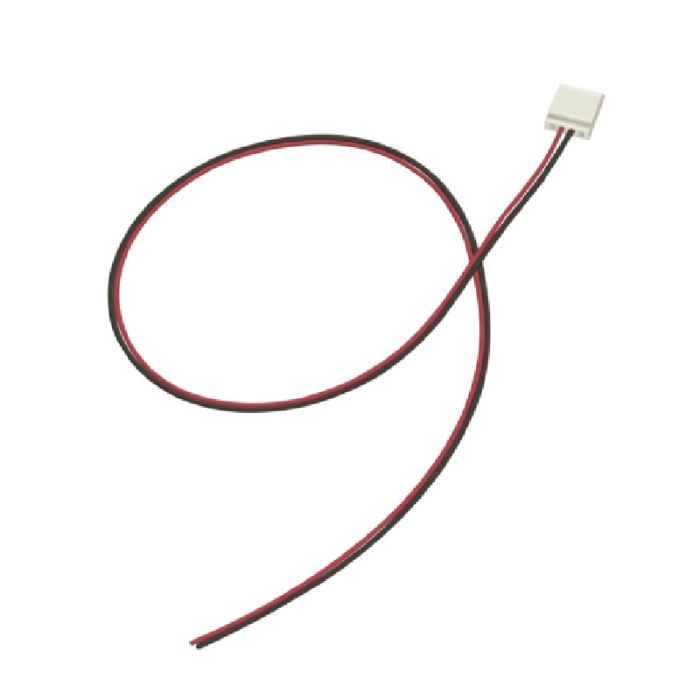

Description: 2pin power feeding connector with 50cm cable
Product: FX-SC08-G2-CT2PF-0500
Cable length: 500 mm
Rated insulation voltage: < 25 V
Rated current: 5 A
Connector closing force: 22 N
PCB retention force: ≥ 15 N
Contact resistance: ≤ 30 mΩ
Conductor cross section: AWG 22
Ambient temperature (storage/transport): -40 – 85 °C
Ambient temperature (operation) LLT - ULT: -30 - 70 °C
Connector part: Inflammability class acc. UL94: V0
Connector part: Insulating material: PBT GF PBT GF
Cable cross section: AWG 22
