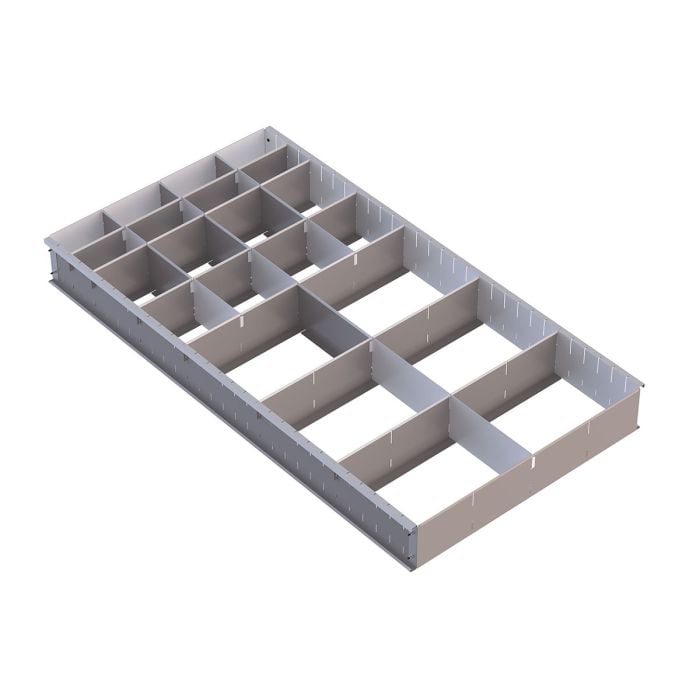

Full Kit - Modular Tray Divider System for Kardex VLM - 1500mm x 800mm - 150mm High

The MDK15-150X80 is a modular tray divider kit for creating adjustable compartments inside a 1500 x 800mm tray, for Kardex and other vertical lift modules (VLMs) and storage carousels. It is a self-assembly system in 0.7mm steel: a frame, long dividers running front to back, and cross dividers that clip between them.

Features:

Fits trays with an 1500 x 800mm nominal footprint
Frame external size 1503 x 804mm
150mm compartment height
Long dividers reposition across the frame in 50mm increments to set lane width
Cross dividers locate on the long dividers' 200mm slot pitch to set compartment depth
Up to 3 cross dividers per lane, for up to 4 compartments front to back
Supplied as a complete kit, all components also sold separately
Ships flat, self-assembly

Kit contents:

1 x MDK15-150X80-FA Frame assembly
8 x MDK15-LDV80 Long dividers, 783mm
6 x MDK15-CDV-10 Cross dividers, 100mm
6 x MDK15-CDV-20 Cross dividers, 200mm
6 x MDK15-CDV-30 Cross dividers, 300mm
6 x MDK15-CDV-40 Cross dividers, 400mm

Configure the layout to your stock, then reconfigure it whenever your inventory changes rather than buying a new insert. Check your tray's internal size against the frame's external size before ordering. Part of the MDK range, so you can add matching frames, long dividers and cross dividers to expand or rebuild any tray.
