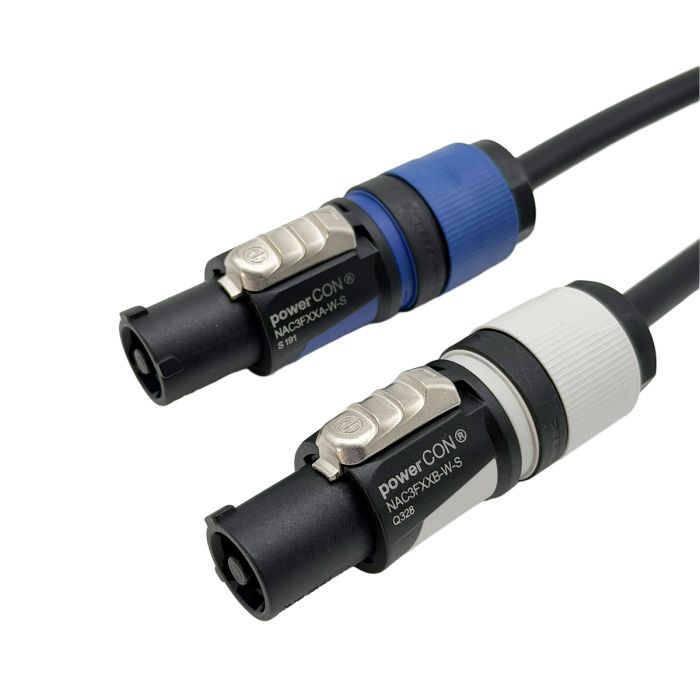

4.92ft H07 Studio Series Power Lead 1/16" NAC3FXXA-W-S - NAC3FXXB-W-S
Part No
LEP15FCAB1-5
4.92ft H07 Studio Series Power Lead 1/16" NAC3FXXA-W-S - NAC3FXXB-W-S
Key Features
Pre-assembled powerCON A-to-B link lead. Genuine Neutrik powerCON FXX connectors - the current-generation successor to NAC3FCA / NAC3FCB - terminated to H07 rubber-jacketed cable. Built for studio, stage and install where a locking, daisy-chainable AC power link is needed. Backwards-compatible with existing NAC3MPA / NAC3MPB chassis connectors as well as the new XX series receptacles.
Key Features
- Neutrik NAC3FXXA-W-S - NAC3FXXB-W-S - current-generation FXX series, in-production replacement for the discontinued NAC3FCA / NAC3FCB.
- Circuit Breaking Capability (CBC) when mated with Neutrik powerCON XX Series receptacles - safe make/break under load on compatible equipment.
- H07 rubber-jacketed cable - Class 5 fine-stranded copper, flame-retardant, oil- and acid-resistant.
- Neutrik locking bushing and strain relief sized for 0.24"–0.47" cable OD, with two-component kink protection at the entry.
- Pre-keyed power-in (blue) / power-out (gray) - intermating prevented by design.
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified connectors.
Specifications
- Connector A (in): Neutrik NAC3FXXA-W-S (powerCON A, blue, power-in)
- Connector B (out): Neutrik NAC3FXXB-W-S (powerCON B, gray, power-out)
- Cable: Cleveland Cable
- Construction: 3 × 1.5mm², Class 5 fine-stranded copper
- Conductor size (AWG equivalent): approx. 16 AWG
- Jacket: Black, rubber, IEC 60332-1-2 flame retardant
- Cable OD: 0.40"
- Cable current rating: 16A
- Connector current rating: 16A (Neutrik FXX max)
- Operating voltage: 100–250V AC
- Phase: Single phase
- Cable temperature range: −13°F to +140°F
- Minimum bend radius: 0.79"
| Cable Length | 59 1/16" |
|---|---|
| Weight | 10.58oz |
