32.8ft Studio Series Power Lead IEC to Powercon

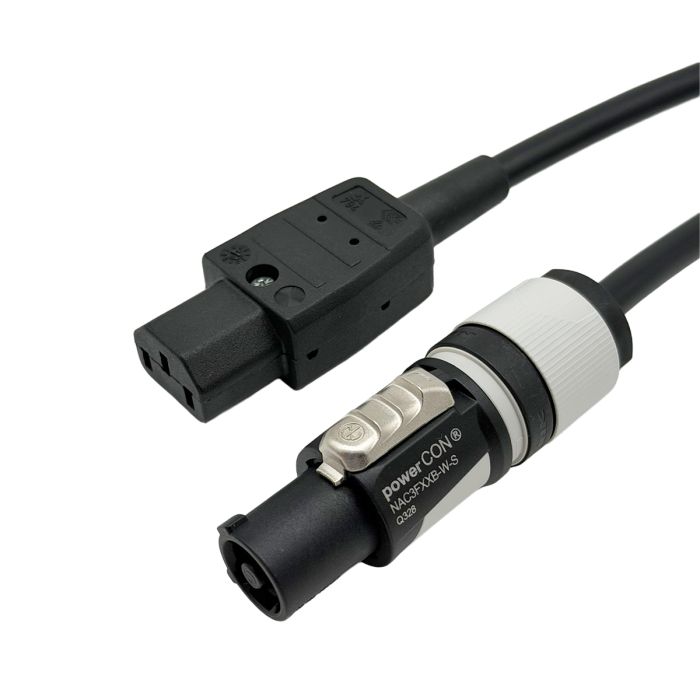

Pre-assembled link lead converting a powerCON daisy-chain output into a standard IEC C13 inlet. Genuine Neutrik powerCON NAC3FXXB-W-S - the current-generation successor to NAC3FCB - terminated to a rewireable IEC C13 connector via soft H05 PVC-jacketed cable. The lead of choice for feeding any standard IEC-inlet equipment from a powerCON-equipped distributor, conditioner, or rack power supply. Backwards-compatible with existing NAC3MPB chassis connectors as well as the new XX series receptacles.

Key Features

• Neutrik NAC3FXXB-W-S powerCON connector - current-generation FXX series, in-production replacement for the discontinued NAC3FCB.
• Circuit Breaking Capability (CBC) at the powerCON end when mated with Neutrik powerCON XX Series receptacles - safe make/break under load on compatible equipment.
• Rewireable IEC C13 connector - industry-standard inlet, compatible with the vast majority of studio, broadcast, and AV equipment with C14 power inlets.
• Soft but durable H05VV-F PVC 3 × 1.5mm AC power cable in black.
• Neutrik locking bushing and strain relief sized for 0.24"–0.47" cable OD, with two-component kink protection at the powerCON entry.
• Built for daisy-chain power conversion - feed IEC-inlet equipment from any powerCON-B equipped distributor, conditioner, or PDU.

Specifications

• Connector A (powerCON end): Neutrik NAC3FXXB-W-S (powerCON B, gray, power-out)
• Connector B (IEC end): Rewireable IEC C13 (female)
• Cable: Webro
• Construction: 3 × 1.5mm²
• Conductor size (AWG equivalent): approx. 16 AWG
• Jacket: Black PVC, H05VV-F
• Cable OD: 0.31"
• Cable current rating: 16A
• IEC C13 current rating: 10A (per IEC 60320) - effective ceiling for this lead
• powerCON connector current rating: 16A (Neutrik FXX max)
• Operating voltage: 100–250V AC
• Phase: Single phase
• Cable temperature range: +5°F to +158°F
• Minimum bend radius: 0.79"
