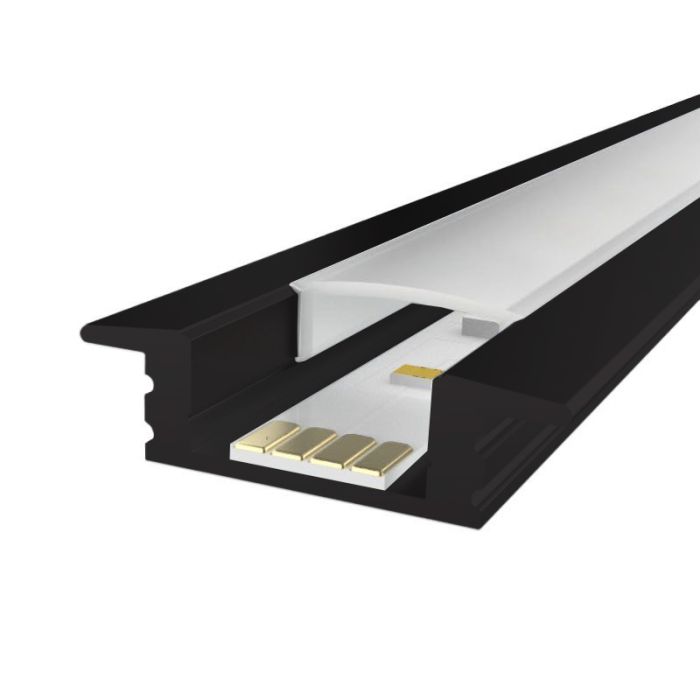

1m 25x8mm Black Recessed Aluminium Profile Kit for up to 12mm Led strips

Standard size extrusion with diffuse cover for recessing installation
for a wide range of applications including: furniture and joinery
lighting, counter lighting, ceiling decorating (skylight) and many more.
Suitable for LED strips not wider than 12mm.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Screw
mounting brackets (most applications require 2 per meter) to the
mounting surface, push the aluminium base into the brackets, install
your led strips inside the profile and finally push-in the cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking
to get a dotless (no hot spots) lighting effect? Use together with the
5W COB FossLED strips in 2700K Warm White LEDFLCOB5W27K or 4000K
Cool/Neutral White LEDFLCOB5W4K

Need a more cost effective
solution? Try the Osram 8.6W Basic Flex in 2700K Warm
White LEDBF1000SG3827 or 3000K Warm White (slightly cooler)
LEDBF1000SG3830

Included in the 1m KIT:
LEDAL08A1MB - 1M Black aluminium extrusion
LEDAL08MC1M - 1M Milky cover
LEDAL08EC - 1x End Cap without hole
LEDAL08ECH - 1x End Cap with hole for cable entry
LEDAL08MB - 2x Mounting brackets

Other options available:
LEDAL08M3 - 3M anodized version (grey)
LEDAL08W - 1M White version

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 12 mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Furniture lighting;
+ Joinery lighting;
+ Ceiling lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Additional information:
Height: 7.6 mm
Length: 1000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Base): 17.5 mm
Width (Interior): 12.2 mm
Width (Top): 25 mm
Cover material: PC

LED shown in images for illustration purposes and is not included in profile
