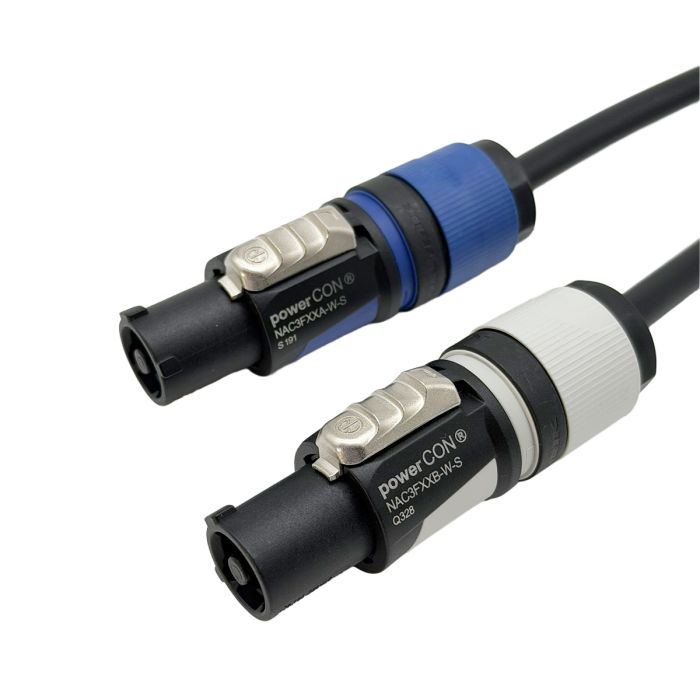

5M H07 Studio Series Power Lead 1.5mm NAC3FXXA-W-S - NAC3FXXB-W-S
Part No
LEP15FCAB5
5M H07 Studio Series Power Lead 1.5mm NAC3FXXA-W-S - NAC3FXXB-W-S
Pre-assembled powerCON A-to-B link lead. Genuine Neutrik powerCON FXX connectors - the current-generation successor to NAC3FCA / NAC3FCB - terminated to H07 rubber-sheathed cable. Built for studio, stage and install where a locking, daisy-chainable mains link is needed. Backwards-compatible with existing NAC3MPA / NAC3MPB chassis connectors as well as the new XX series receptacles.
Key Features
- Neutrik NAC3FXXA-W-S - NAC3FXXB-W-S- current-generation FXX series, in-production replacement for the discontinued NAC3FCA / NAC3FCB.
- Circuit Breaking Capability (CBC) when mated with Neutrik powerCON XX Series receptacles - safe make/break under load on compatible equipment.
- H07 rubber-sheathed cable - Class 5 fine-stranded copper, flame-retardant, oil- and acid-resistant.
- Neutrik locking bushing and strain relief sized for 6–12mm cable OD, with two-component kink protection at the entry.
- Pre-keyed power-in (blue) / power-out (grey) — intermating prevented by design.
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified connectors.
Specifications
- Connector A (in): Neutrik NAC3FXXA-W-S (powerCON A, blue, power-in)
- Connector B (out): Neutrik NAC3FXXB-W-S (powerCON B, grey, power-out)
- Cable: Cleveland Cable
- Construction: 3 × 1.5mm², Class 5 fine-stranded copper
- Sheath: Black, rubber, IEC 60332-1-2 flame retardant
- Cable OD: 10.2 mm
- Cable current rating: 16A
- Connector current rating: 16A (Neutrik FXX max)
- Operating voltage: 100–250V AC
- Phase: Single phase
- Cable temperature range−25°C to +60°C
- Minimum bend radius: 20mm
| Cable Length | 5m |
|---|---|
| Weight | 500g |
