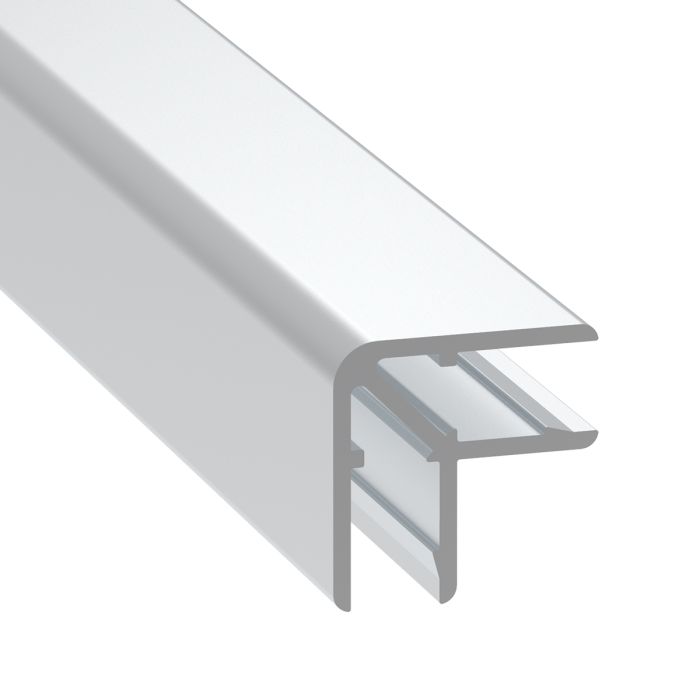

10mm Smooth Double Angle No Rivets Extrusion with 30mm Legs - 4m Long
Part No
EG-0164-4M
€42.26
€35.22
In stock
Aluminium double-angle extrusion for flight case construction, designed to attach panels without rivets. Instead of the traditional rivet-fixed method, the panel's routed edge clicks onto the extrusion - giving a clean, rivet-free finish while maintaining a strong 90° internal corner joint where two panels meet.
Equal-length 30mm legs provide balanced contact on both panel faces. The click-on mechanism locks panels in place firmly with no additional fasteners needed.
The smooth exterior surface gives the joint a clean, professional appearance on the finished case.
No riveting required - the panel's routed edge clicks onto the extrusion, eliminating rivet drilling and giving the case a cleaner appearance.
Specifications:
- Slot size: 10mm (accepts panels up to 10mm thick)
- Opening depth: 16mm
- Leg size: 30mm
- Thickness: 2mm
- Radius: 5mm
- Length: 4m
- Material: Aluminium
Panel Preparation Required: Panels must be CNC-routed with a groove 10mm from the panel edge (minimum 3mm wide, 1mm deep), with the outside face facing down during routing. Note: the click-on system requires tight panel thickness tolerances (±0.1mm) for a secure fit.
Installation: Press the panel's routed edge onto the extrusion - no riveting required.
Also Available:
- EG-0164-2M - 2 metre length
Applications: Flight cases, road cases, equipment enclosures, speaker cabinets.
| Opening | 10mm |
|---|---|
| Opening Depth | 16mm |
| 3D Model | View 3D Drawing |
| Length | 4m |
| Radius | 5mm |
| Thickness | 2mm |
| Leg Size | 30mm |
| Material | Aluminium |
| Weight | 2.34kg |
| Finish | Aluminium |
