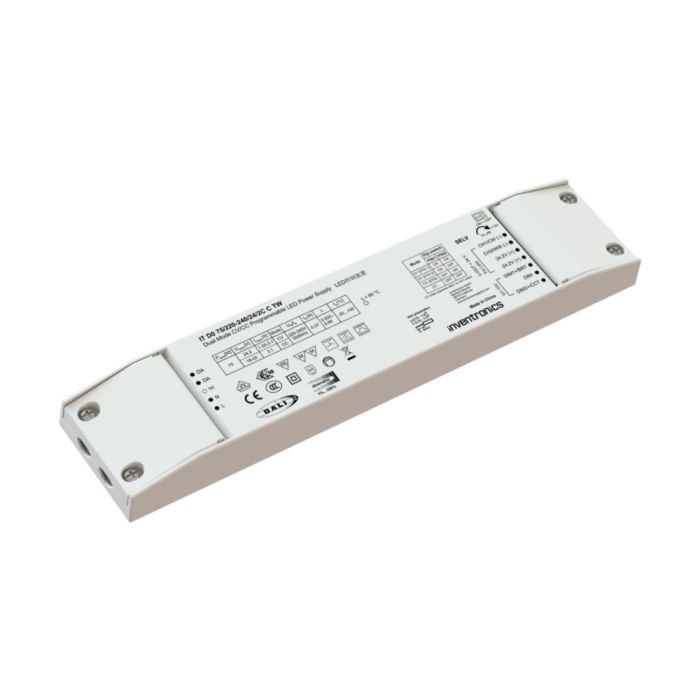

Led Driver 75W DALI & 0-10 / 1-10V / PWM Dimmable Single Channel IT D0 75/220-240/24/C 6937186142238

Icutronic family - 24V DALI / 0-10 / 1-10V / PWM
Generation 1 IT D0 75/220-240/24/C - 75W single channel
Capable
of both DALI DT6 & DT8, 1-10V analogue dimming and constant current
mode (all these modes selectable via dip-switches*)

*Dip-Switch mode selection can be overridden via T4T software, implemented via DALI Magic tool LEDDALIMUSB

Product family benefits:
Dimmable via DALI, 0-10V, touch-dim or corridor
DALI-2 certified
24.2 V nominal output + 1.5 V adjustable
CC mode for 18-24 V output option

Product features:
DALI-2 certified
2 independent channels
Lamp Failure detection
CLASS II independent housing
Smart Power Supply
Very low min dimming level: 1% (CV mode)
5 years guarantee
Touch-DIM and corridor compatibility
Overload/Over temperature and Short circuit protection
Constant current mode (for use with mainly high power linear modules, such as those used in batten lights or lowbays)
Potentiometer on the output side to increase voltage by up to 1.5V to obtain longer cable distances between driver and loads*
*still subject to max 3m tested EMI performance

Areas of applications:
Hospitality, cove lighting, shops.
Suitable for indoor CLASS I and CLASS II luminaires

Other options in the range:
LEDITD03624VC - 36W single channel
LEDITD03624V2CTW - 36W 2 channel TW
LEDITD015024V2CTW - 150W 2 channel TW
LEDITD020024VC - 200W single channel
LEDITD020024V2CTW - 200W 2 channel TW

EAN: 6937186142238

Electrical data Input:
Nominal line voltage: 220-240 V
Mains line frequency: 50/60 Hz
AC voltage range: 198 – 264 V
Nominal current: 0.37 A*
Total Harmonic Distortion (THD): <10*
Power factor λ: 0.98*
Efficiency in full load: 92 %*
Device power loss: 6.0 W*
Networked stand-by power: <0,50 W*
Protection class: II
Suitable for fixtures with prot. Class: I/II
Inrush current (Full Load, 230 Vac, Cold Start): 42.8 Apk
Max. ECG no. on circuit breaker 10 A (B): 8
Max. ECG no. on circuit breaker 16 A (B): 13
Max. ECG no. on circuit breaker 25 A (B): 20
Max. ECG no. on circuit breaker 32 A (B): 26
Max. ECG no. on circuit breaker 10 A (C): 13
Max. ECG no. on circuit breaker 16 A (C): 21
Max. ECG no. on circuit breaker 25 A (C): 34
Max. ECG no. on circuit breaker 32 A (C): 43
*Typical @ Full load, 230 Vac, 50 Hz

Electrical data Output:
Nominal voltage (in CV mode): 24.2 V
Max. voltage (in CV mode): 25.7 V
Nominal current (in CV mode): up to 3.1 A
Nominal voltage (in CC mode): 18-24 V
Nominal current (in CC mode): 3.1 A
Voltage accuracy (at nominal voltage 24,2 V): ± 1 %
Voltage ripple (@ 100 Hz, full load. Typical < 720 mVpp): < 3 %
Nominal output power: 0 – 75 W*
Max output power in AC (at steady state): 75 W**
Galvanic isolation: SELV
*Performance and harmonics guaranteed between 37.5 – 75 W
** Smart Power to manage up to Pout_max + 44%

Electrical data Dimming:
Dimming interface: DALI2*/0-10V / 1/10V/PWM
Dimming range (CV mode, DALI dimming steps 0 – 254): 1 – 100 %
Dimming range (CC mode): 10 – 100 %
Dimming method: PWM**
TLA (Flicker and strobe effects): PST < 1 & SVM < 0,4 ***
Galvanic Isolation - Basic insulation: DALI to PRI; 0-10V/1-10V/PWM to PRI
Galvanic Isolation - Supplementary insulation: 0-10V/1-10V/PWM to SEC
Galvanic Isolation - Double insulation: DALI to SEC
*Proper DALI diagnostics with a min. load of 15% (11.25 W)
** Output frequency of 6 kHz
*** For dimming condition < 10% @ Full load

Environmental data:
Ambient temperature range: -20…+50 C
Max. temperature at Tc test point: 75 C*
Max. case temperature in fault condition: 110 C
Storage temperature range: -25…+85 C
*Measured on tc point indicated of the prod label, ta not exceeded

Capabilities:
Surge capability - L to N acc. to. EN 61547: 1 kV
Surge capability - L+N to GND plane: 2 kV
Environmental rating: Indoor
IP protection class: IP20
Mains switching cycles (@ ta = 25°C): > 150000 cycles
Expected ECG lifetime - @ tc MAX – failure rate max. 10%: 50000 h
Expected ECG lifetime - @ tc MAX -10°C – failure rate max. 10%: 100000 h
No-load proof (Auto recovery): Yes
Intended for no-load operation: No
Overheating protection (Auto recovery): Yes
Overload protection (Auto recovery + Smart Power): Yes
Short-circuit protection (Auto recovery): Yes

Length: 275 mm
Width: 60 mm
Weight: 295 g
Mounting holes interaxis: 237.8 mm
Casing material: Plastic
Casing colour: White
Type of connection: Screw terminals (0,5 – 2,5 mm²)
Wire preparation length (Input): 5…6 mm
Wire preparation length (Output): 5…6 mm
