45U Rack Strip with Square Holes 1.5mm Thick

Available

Part No

R0863

Be the first to review this product

Description

45U Rack Strip with Square Full Holes.

Thickness: 1.5mm

Sold as single rail.

Mounting Equipment on Rails:
- Use our new and innovative Clip Nuts on Rack Rails for an easy and economic alternative.
- Also compatible with S1170/S1172 Captive Nuts, S1045 M6 Screws and S1940 and S1941 Cup Washers.
- For Universal Rack Cage Nut Tool see part SX1100

Technical Information

Technical Information
Size U	45U

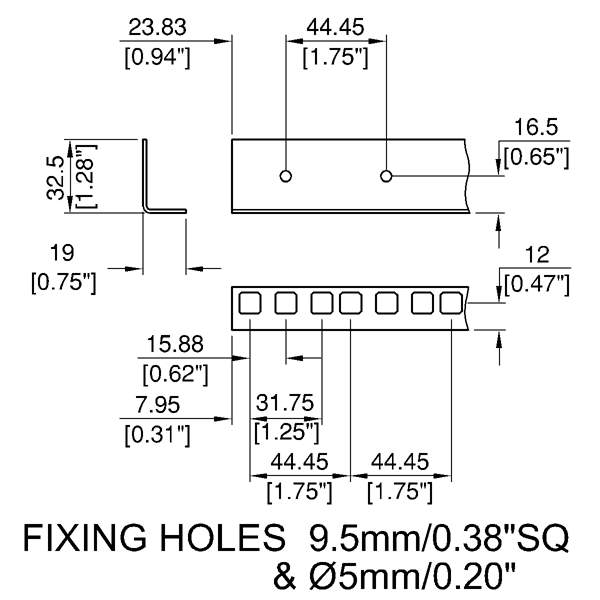

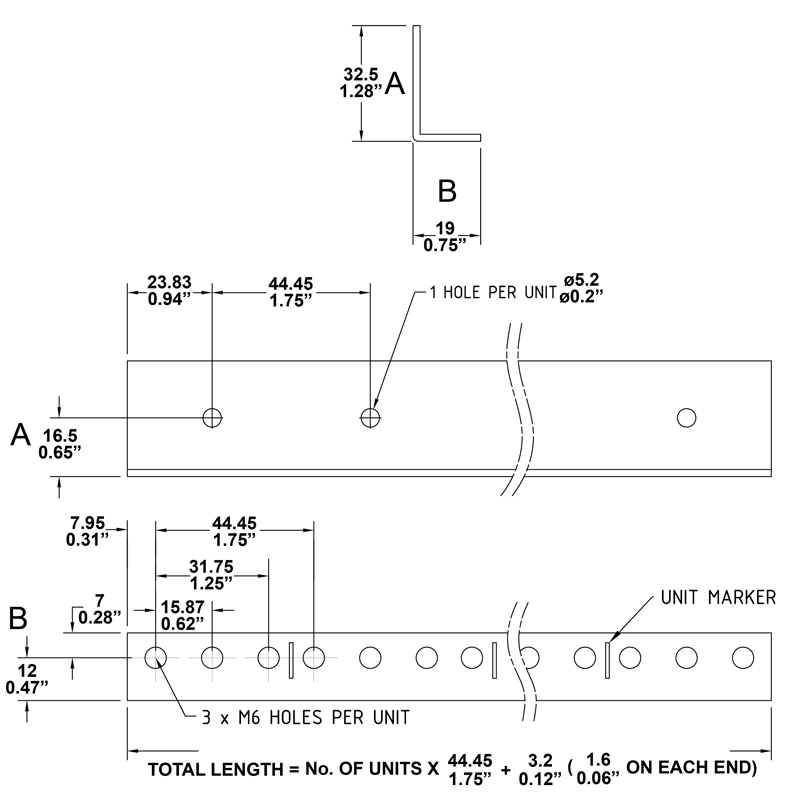

3D Model	View 3D Drawing
Length	2m
Thickness	1.5mm
Material	Steel
Type	R0863 Series
Weight	1.18kg
Hole Types	Square Holes
Finish	Black
