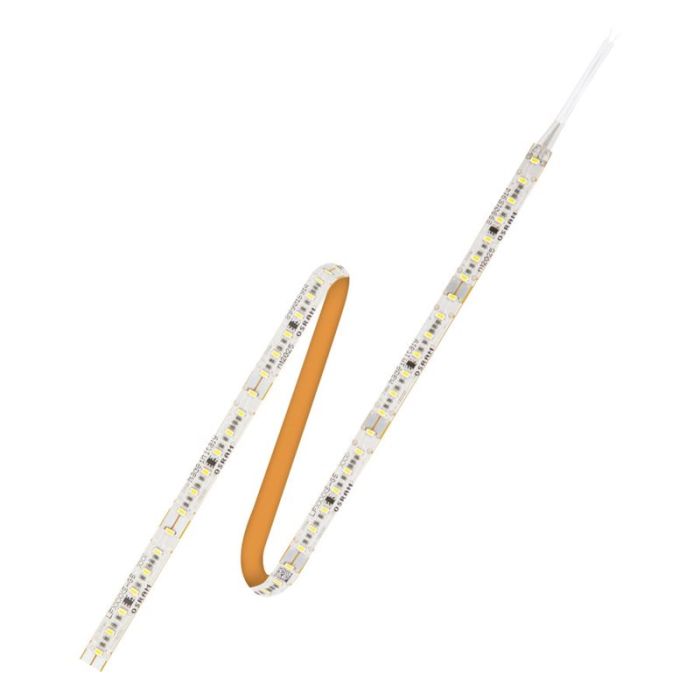

Led Lf1200s-g5-930-10 L2 Shortpitch 10m/reel 3k 24v 4062172170673

EAN: 4062172170673

Product family benefits

• Color uniformity better than 2 SDCM on the entire LED strip and between strips
• Light stability over time typically 1 SDCM, tested acc. to IEC 62717 @ 6,000 h
• LED lifetime acc.to IES LM-80 and IES TM-21 standards, and also internal OSRAM LAB tests
• Reliable photometric parameters according to IES LM-79, EN13032-4 and CIE S 025
• Accurate description of the color rendition of the light source acc. to IES TM-30-15
• Excellent robustness: single reel manufacturing technology (no solder joints on strip)
• Vibration-resistant for stationary installations acc. to IEC60068-2-6 and IEC60068-2-64
• Flicker and stroboscopic effect-free acc. to IEC TR 61547-1 and IEC TR 63158
• Tested by accredited Product Qualification Lab. ISO9001, ISO 17025, ACCREDIA, VDE
• Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back

Equipment / Accessories

• Flexessories: a complete set of aluminum channels with diffusers and lenses
• Connectors: quick-and-easy toolless installation with SLIMCONNECTsystem G2
• Drivers and dimmers: wide selection of OPTOTRONIC 24 V DALI, DMX and BLE
• Check for more detailed information the specification sheets in the download section

Electrical data
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 10.9 W
Rated wattage: 109.00 W
Input voltage range: 23…25 V
Accidental reverse input voltage protection up to: 25 V

Photometrical data
Light color LED: White
Color rendering index Ra: 90
Luminous flux per meter: 1200 lm
Total useful luminous flux: 12000 lm
Luminous efficacy: 110 lm/W
Standard deviation of color matching: ≤3 sdcm
Light color (designation): 3000 K
Color temperature: 3000 K

Light technical data
LED pitch: 7.14 mm
Beam angle: 120 °
Rated beam angle (half peak value): 120.00 °
Starting time: < 0.5 s
Warm-up time (60 %): < 0.50 s

LED module information
Number of LEDs per meter: 140
Number of LEDs per smallest unit: 7

Dimensions & weight
Length: 10000 mm
Length – smallest unit: 50.0 mm
Width: 8.00 mm
Height: 1.40 mm
Cable length: 500.0
Product weight: 123.00 g
Cable cross-section, input side: 0.5 mm²

Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 40 °C
Temperature range in operation at Tc point: -30…85 °C
Ambient temperature range: -30…+50 °C
Temperature range at storage: -40…85 °C

Lifespan
Rated lamp life time: 60000 h
Nominal lamp life time: 60000 h
Lumen main.fact.at end of nom.life time: 0.70
Number of switching cycles: 15000

Additional product data
ID of contained light source: LS_TRV_285941

Capabilities
Dimmable: Yes
Lowest bending radius: 20 mm

Certificates & standards
Energy consumption: 120 kWh/1000h
Standards: CE/ENEC/EAC/UL
Type of protection: IP00
Energy efficiency class of the contained light source: F

Logistical data
Commodity code: 940542319000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 13-02-2022
Primary Article Identifier: 4062172170673
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: 87c7619c-dba5-42e9-9f4e-f8438127a1b8
