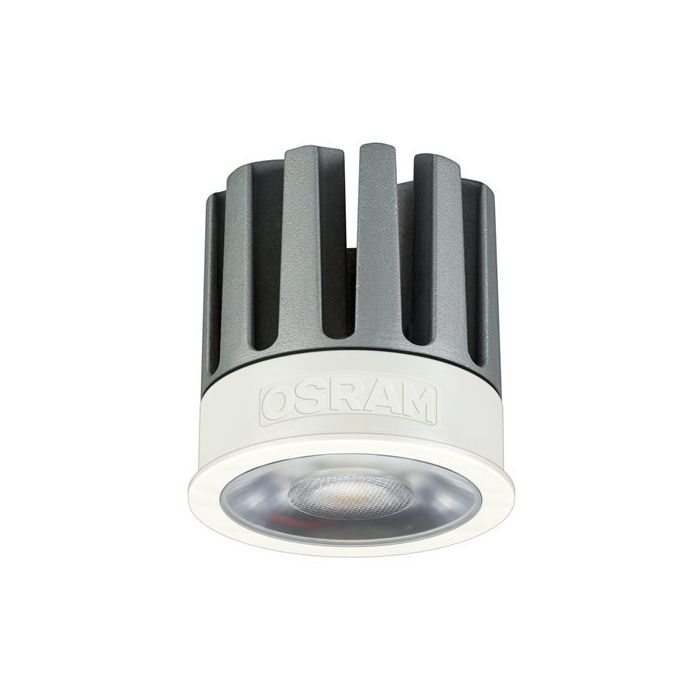

Led Pl-cn50-cob-1400-927-24d-G2 Fs1 Prevaled Coin Cob 50 4052899621190
Osram
Question about this product?
EAN: 4052899621190
Priced per unit; available in any quantity. For best LED driver to
match your requirements please see listing below.
Where the output
current of the driver is not a fixed value but a range, specific steps have to
be taken to setup a fixed 350mA output current. Please get in touch for more
information.
LEDOTE13350PC (switched
or mains dimmable)
LEDOTE18350PC (switched
or mains dimmable)
LEDOTDALI20500NFC (DALI2
NFC)
LEDOTDALI2151A0LT2 (DALI2)
Accessories available (Suitable only for PrevaLED 50mm coins):
LEDCOB50G2BC - Black Cover
LEDCN50RR
- White Round Ring
Product family benefits
Compatible with conventional MR16 lamps
Precise optical control and free from multi-shadow issue
Replaceable front cover to maximize optics flexibility and future extension
Dual mode options in High-Output (HO) and High-Efficacy (HE)
Areas of application
Retail, shop, restaurant, hospitality
High-end residential
Suitable for indoor applications
Connecting multiple modules in parallel on one LED driver is not permitted
Connecting multiple modules in series on one LED driver is not recommended
Do not use in sealed fixtures
Avoid covering the lens with dust or any object
Technical Data
Electrical data
Nominal current: 0.35 A
Nominal voltage: 36.5 V
Type of current: DC
Energy consumption in on-mode [GMS]: 12.6 kWh/1000h
On-mode power [GMS]: 12.6 W
Photometrical data
Luminous efficacy: 92 lm/W
Light color (designation): 2700 K
Color rendering index Ra: 90
Useful luminous flux (Φuse) [GMS]: 1000 lm
Correlated color temperature CCT [GMS]: 2700 K
Colour consistency (McAdam ellipses) [GMS]: 2
Peak luminous intensity [GMS]: 4350
Light technical data
Starting time: < 0.5 s
Warm-up time (60 %): < 2.00 s
Dimensions & weight
Diameter: 50.0 mm
Product weight: 90.00 g
Height: 55 mm
Width: 50 mm
Length: 50 mm
Colors & materials
Heatsink color: Grey
Temperatures & operating conditions
Performance temp. acc. to IEC 62717: 70 °C
Maximum temperature at tc test point: 90 °C
Ambient temperature range: -25…+40 °C
Temperature range at storage: -40…80 °C
Lifespan
Number of switching cycles: 15000
Lumen maintenance factor LMF [GMS]: 96
L70B50 lifetime [GMS]: 50000 h
Additional product data
Product remark: Modules perfectly matched to OSRAM OPTOTRONIC LED drivers (see
relevant table)/For current photometric data and important safety, installation
and application information All the technical
parameters apply to the entire module. In view of the complex manufacturing
process for light emitting diodes, the typical values given above for the
technical LED parameters are merely statistical values that do not necessarily
correspond to the actual technical parameters of an individual product;
individual products may vary from the typical values/Tolerance for optical and
electrical data: +/-10%
Lighting technology used [GMS]: LED
Predecessor EAN4052899583627:
Certificates & standards
Standards: Acc. to IEC 62471/Acc. to EN 60598-1/Acc. to EN 60529/Acc. to EN
55015/Acc. to EN 61547/Acc. To EN62031 IEC 605981/CE
Energy efficiency class: F
Type of protection: IP20
Logistical data
Commodity code: 853951000000
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 20-07-2022
Primary Article Identifier: 4052899621190
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
Weight | 90g |
---|
