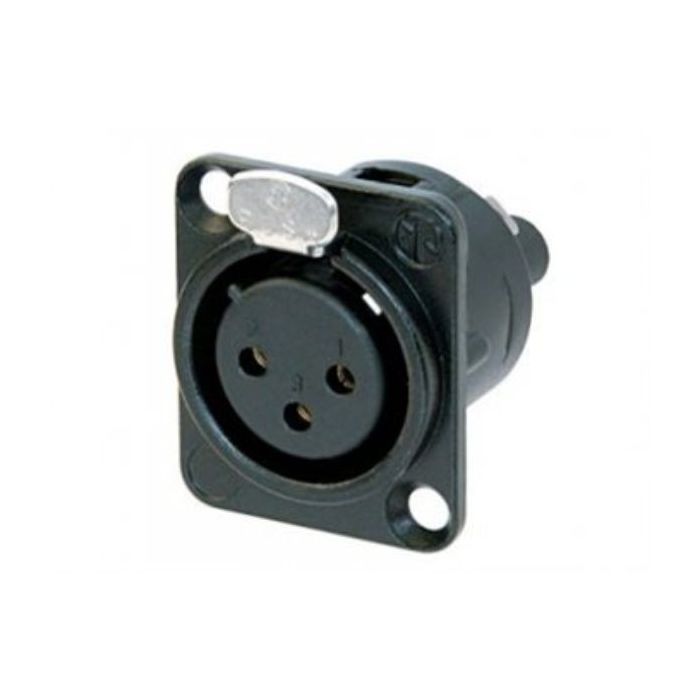

XLR 3 Pin Female Chassis Screw Term Black Body Gold Pins NC3FD-S-1-B
Neutrik
Part No
CONC3FDS1B
XLR 3 Pin Female Chassis Screw Term Black Body Gold Pins
3 pole female receptacle
D-size metal body
Screw terminals accommodating wire range 0.01" - 0.02" (AWG 26 -20)
Black metal housing
Gold contacts
UL recognized component
Technical Specifications:
- Connector Type: XLR
- Gender: female
- Body colour: Black
- Contacts: gold
- Rated current per contact: 3 A
- Dielectric strength: 1.5 kV dc
- Rated voltage: 50 V
- Wire size: 0.14 mm - 0.5 mm
- Wire size: 26 AWG - 20 AWG
- Wiring: Screw terminals
- Locking device: latch lock
- Mounting direction: front
- Chassis shape: D
- Protection class: IP 40
Priced per connector: available in any quantity
Packing information: Box quantity = 10
3 pole female receptacle
D-size metal body
Screw terminals accommodating wire range 0.01" - 0.02" (AWG 26 -20)
Black metal housing
Gold contacts
UL recognized component
Technical Specifications:
- Connector Type: XLR
- Gender: female
- Body colour: Black
- Contacts: gold
- Rated current per contact: 3 A
- Dielectric strength: 1.5 kV dc
- Rated voltage: 50 V
- Wire size: 0.14 mm - 0.5 mm
- Wire size: 26 AWG - 20 AWG
- Wiring: Screw terminals
- Locking device: latch lock
- Mounting direction: front
- Chassis shape: D
- Protection class: IP 40
Priced per connector: available in any quantity
Packing information: Box quantity = 10
| Weight | 40g |
|---|
