6.6ft 5/16" x 3/8" White Mini Surface Mounted Profile

Part No

LEDALMINI02M2W

Sales: +1 519 737 9494 Enquire / Order

Be the first to review this product

Description

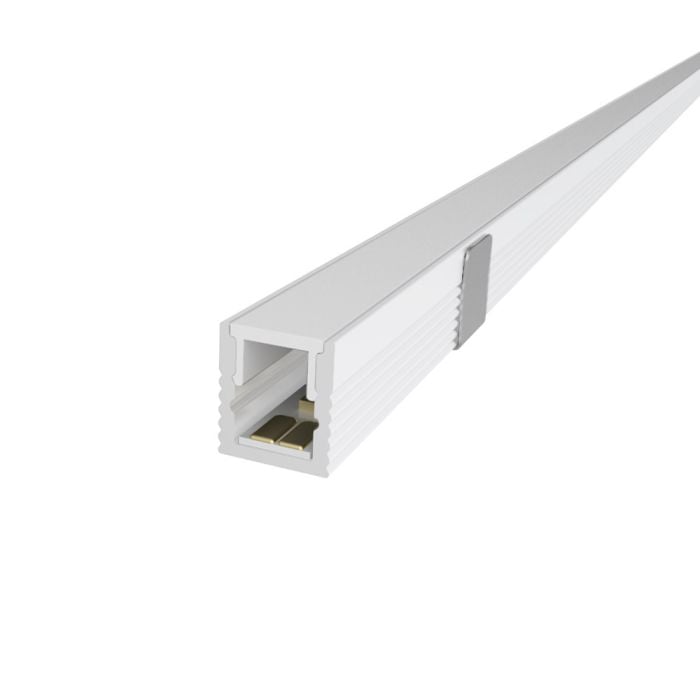

Mini surface mounted aluminum extrusion for creating small and professional LED lighting installations.

Suitable for LED strips not wider than 0.2" (5mm).

The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install:
Screw
mounting brackets (most applications require 2 per meter) to the
mounting surface, push the aluminium base into the brackets, install
your LED strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a custom service and charged additionally.

Looking
to get a dotless (no hot spots) lighting effect? Use together with the
5W Nano COB FossLED strips in 2400K Extra Warm White
LEDFLCOBFCN5W24K or 2700K Warm White LEDFLCOBFCN5W27K.

Included in the 2M KIT:
LEDALMINI02A2MW - 2M white aluminum extrusion
LEDALMINI02MC2M - 2M milky white cover
LEDALMINI02EC - 1x White End Cap without hole
LEDALMINI02ECH - 1x White End Cap with hole for cable entry
LEDALMINI02MB - 4x Metal mounting brackets

Other options available:
LEDALMINI02 - 1M anodized version (gray)
LEDALMINI02M2 - 2M anodized version (gray)
LEDALMINI02M3 - 3M anodized version (gray)

LEDALMINI02B - 1M Black version

LEDALMINI02M2B - 2M Black version

Features:

Aluminum anodized track for LED Flex or LED modules

Low weight

Easy and fast assembly and connection

Suitable for LED strips not wider than 0.2" (5mm)

Advantages:

Excellent heat sink providing long life and reliability for LED

Easy installation of the LED Flex or modules

1 year Warranty.

Application area:

Under stairs lighting;

Under cabinet lighting;

Retail Displays;

Cabinet lighting.

Specifications:

Height: 0.35" (9mm)

Length: 6.6 ft (2m)

Material: 6063-T5 anodized aluminum

Warranty: 1 year

Width (Base): 0.31" (7.8mm)

Width (Internal): 0.22" (5.5mm)

Base thickness: 0.043" (1.1mm)

Cover material: Polycarbonate

Cover assembly method: Push in

Aluminum base finish: RAL9010 Pure White

LED shown in images for illustration purposes and is not included in profile

Technical Information

Technical Information
Length	2m / 78 3/4"
Width	8mm / 5/16"
Profile Type	Surface Mounted
Component Type	Complete Kit
Profile IP rating	IP20
Max Strip Width	5mm / 3/16"
Material	Aluminum 6063-T5
Weight	200g
Height	9mm / 3/8"
Finish	White
